Floor And Roof < Lancer >

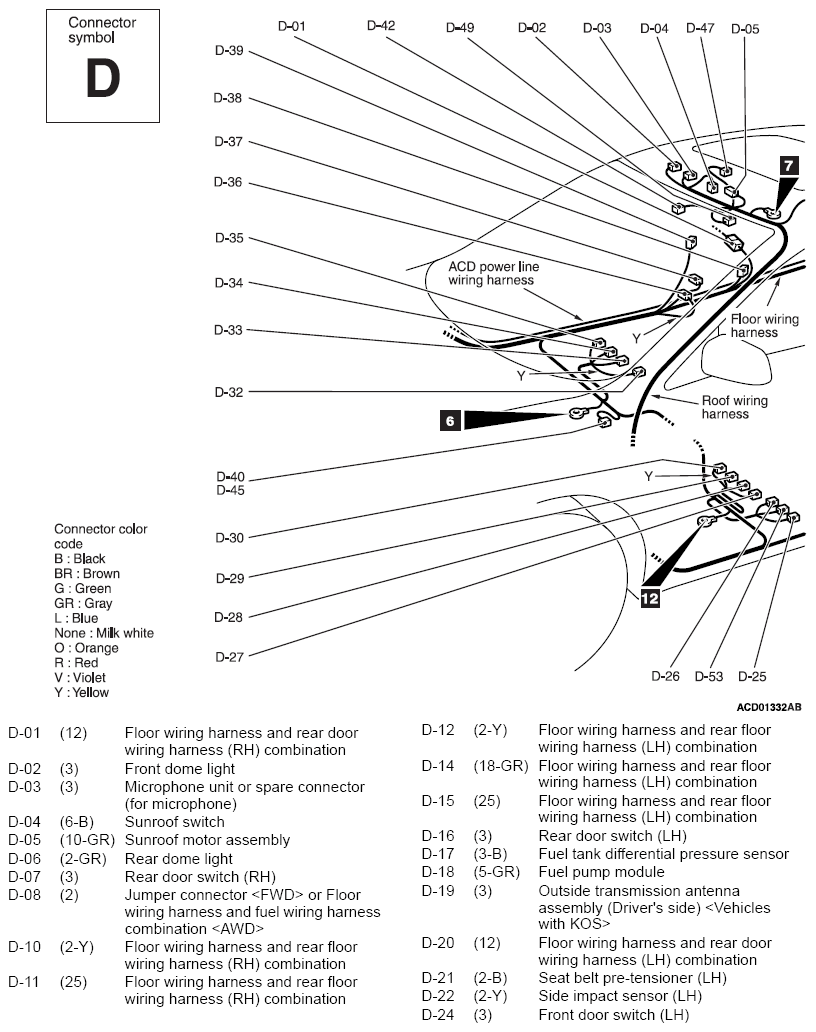

Fig 1: Floor And Roof Connectors Location (Lancer; 1 Of 2)
G09620023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

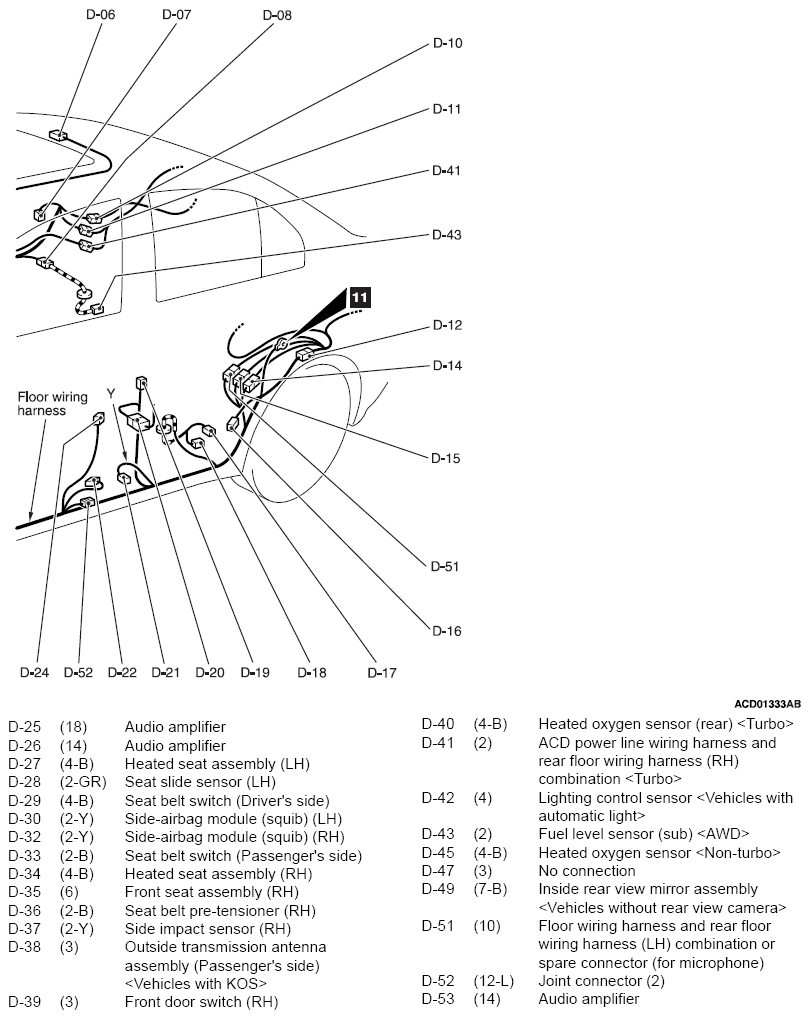

Fig 2: Floor And Roof Connectors Location (Lancer; 2 Of 2)
G09620024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
