Seat Belt Warning Tone Alarm

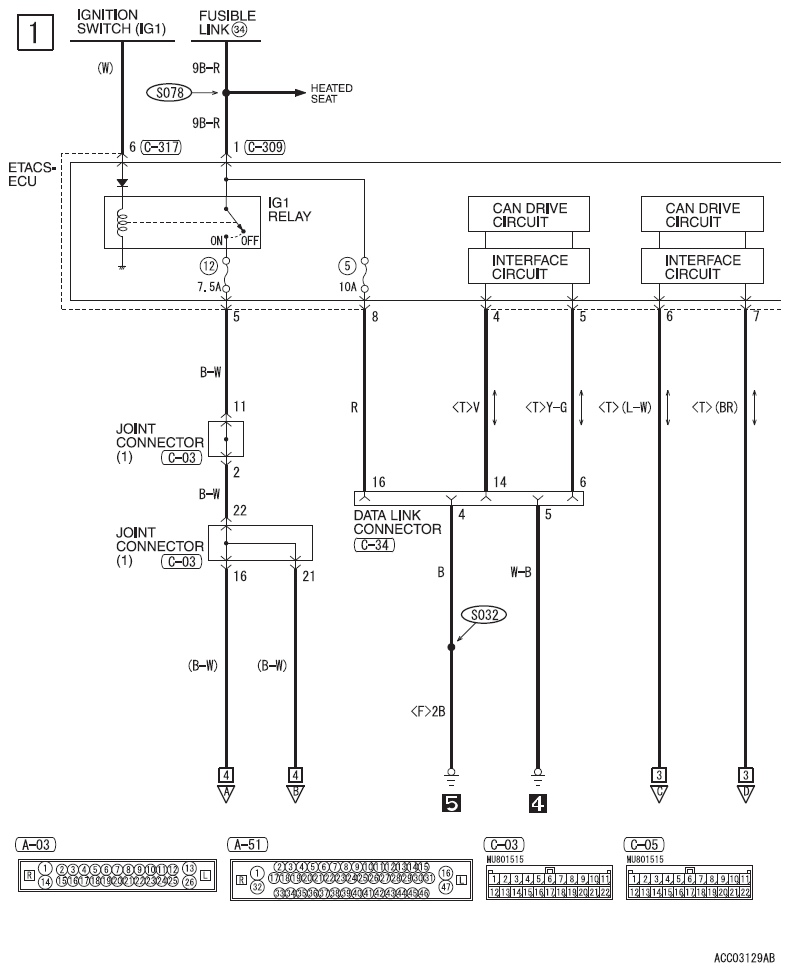

Fig 1: Seat Belt Warning Tone Alarm - Circuit Diagram (1 Of 4)
G09620541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

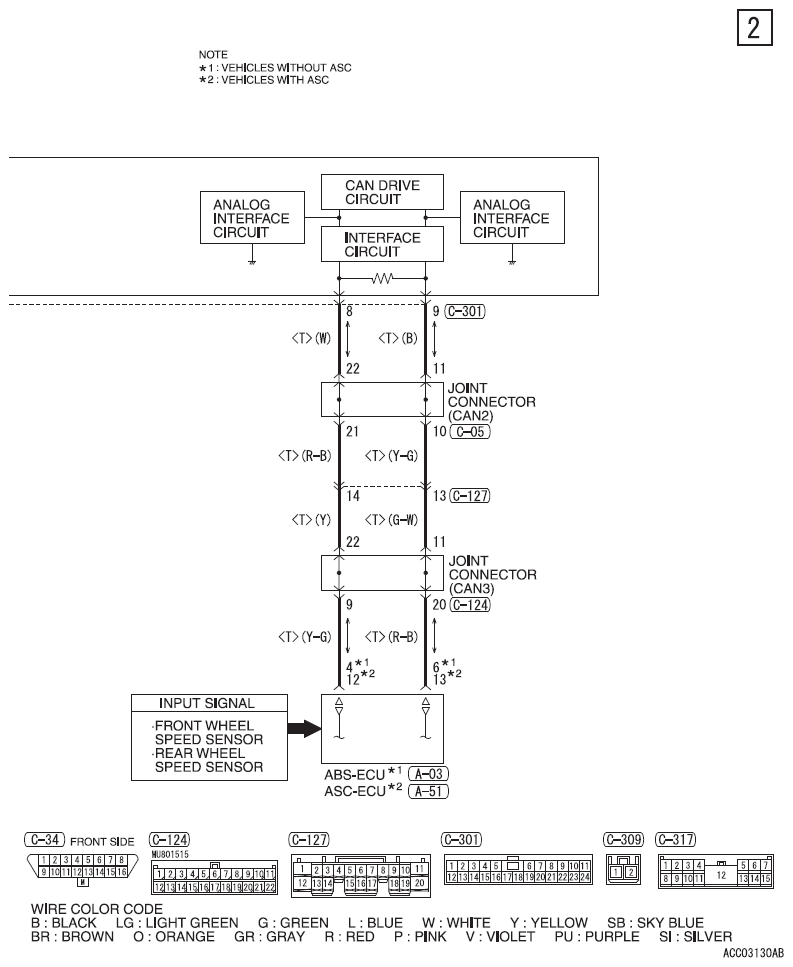

Fig 2: Seat Belt Warning Tone Alarm - Circuit Diagram (2 Of 4)
G09620542Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

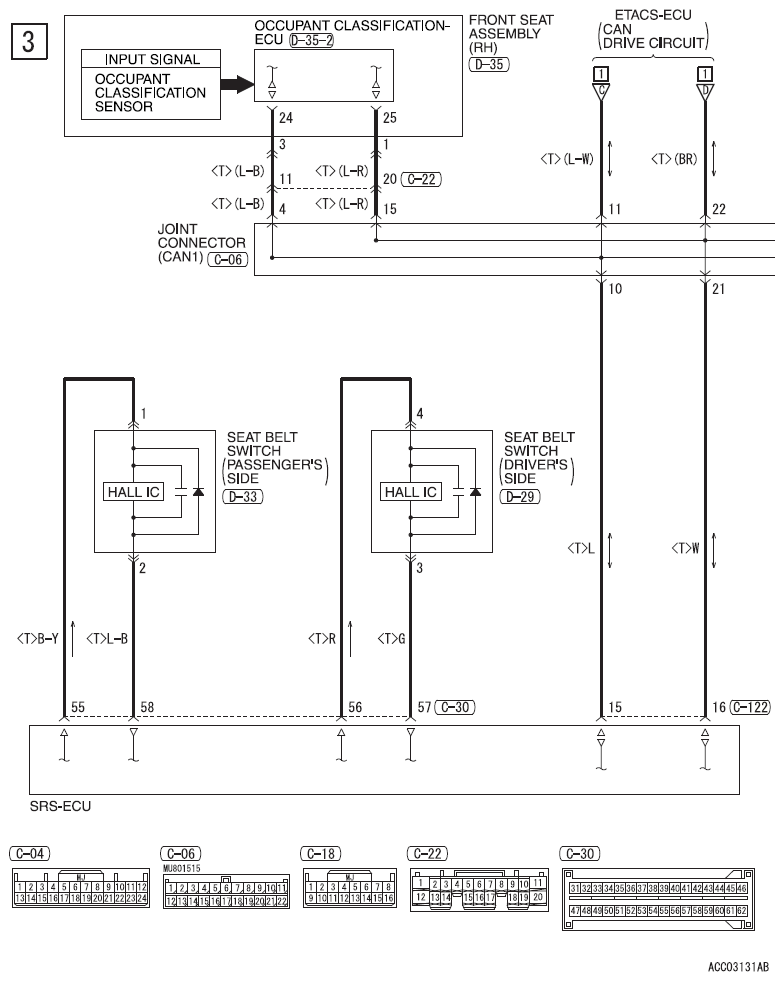

Fig 3: Seat Belt Warning Tone Alarm - Circuit Diagram (3 Of 4)
G09620543Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

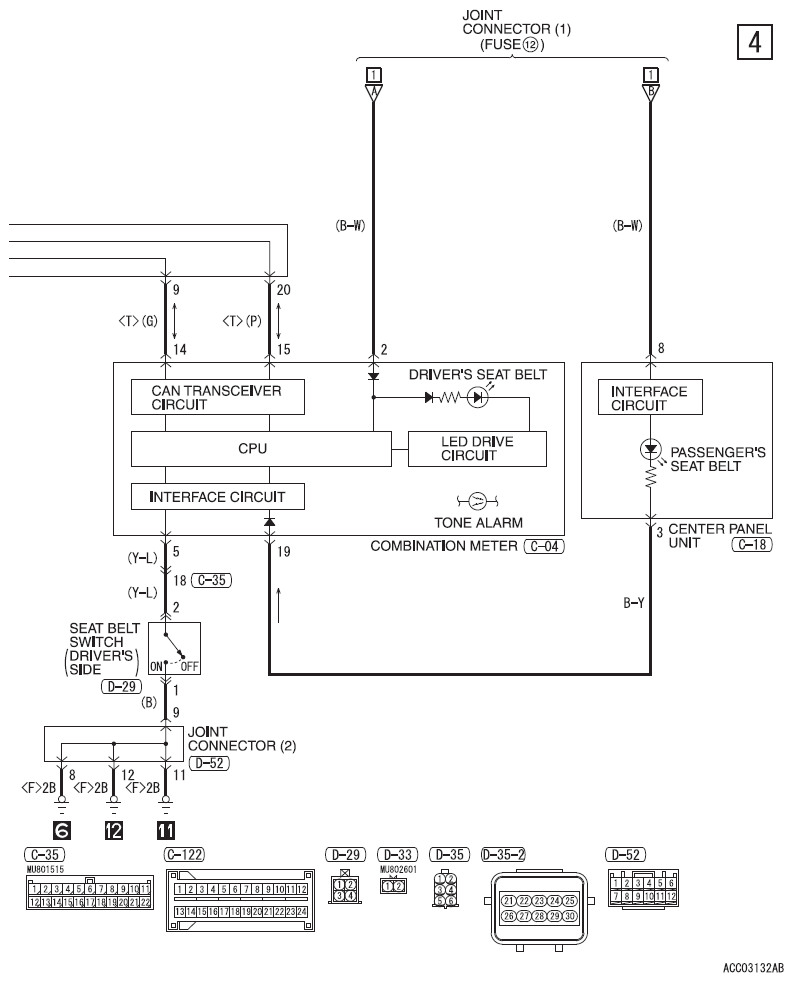

Fig 4: Seat Belt Warning Tone Alarm - Circuit Diagram (4 Of 4)
G09620544Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
