Parking Brake Reminder Tone Alarm

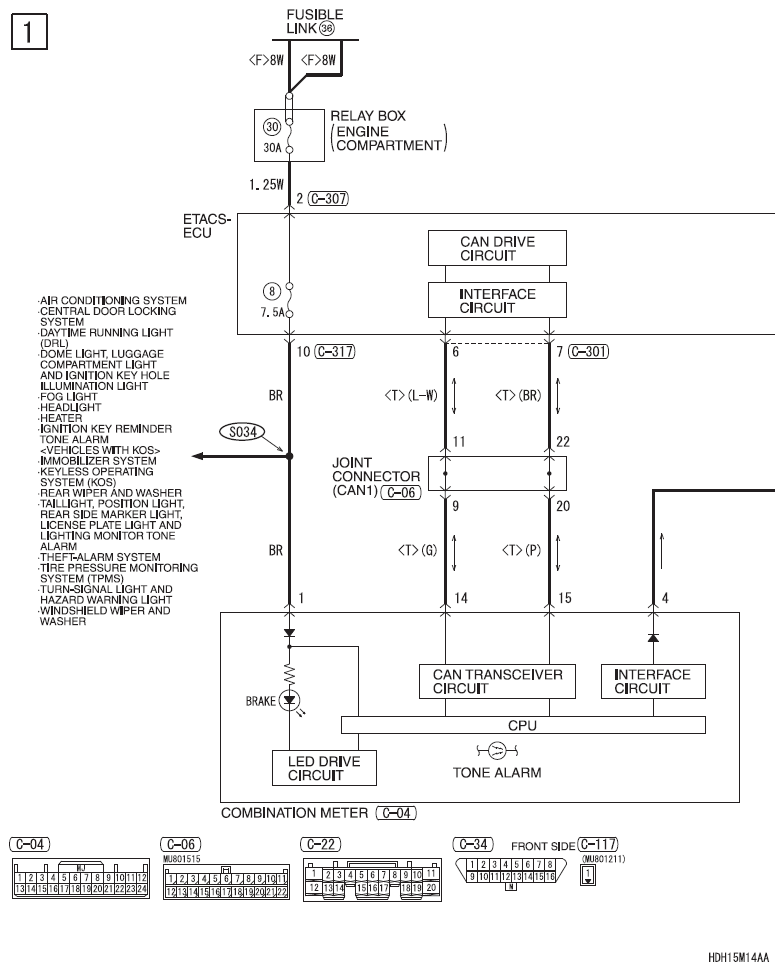

Fig 1: Parking Brake Reminder Tone Alarm - Circuit Diagram (1 Of 3)
G09620545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

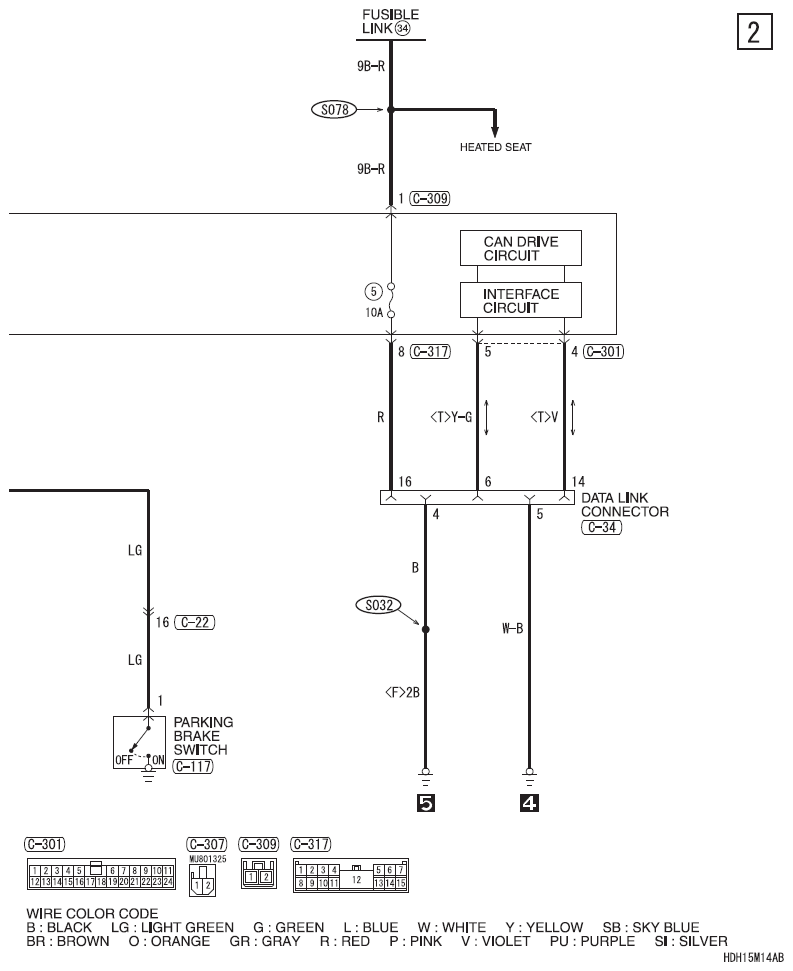

Fig 2: Parking Brake Reminder Tone Alarm - Circuit Diagram (2 Of 3)
G09620546Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

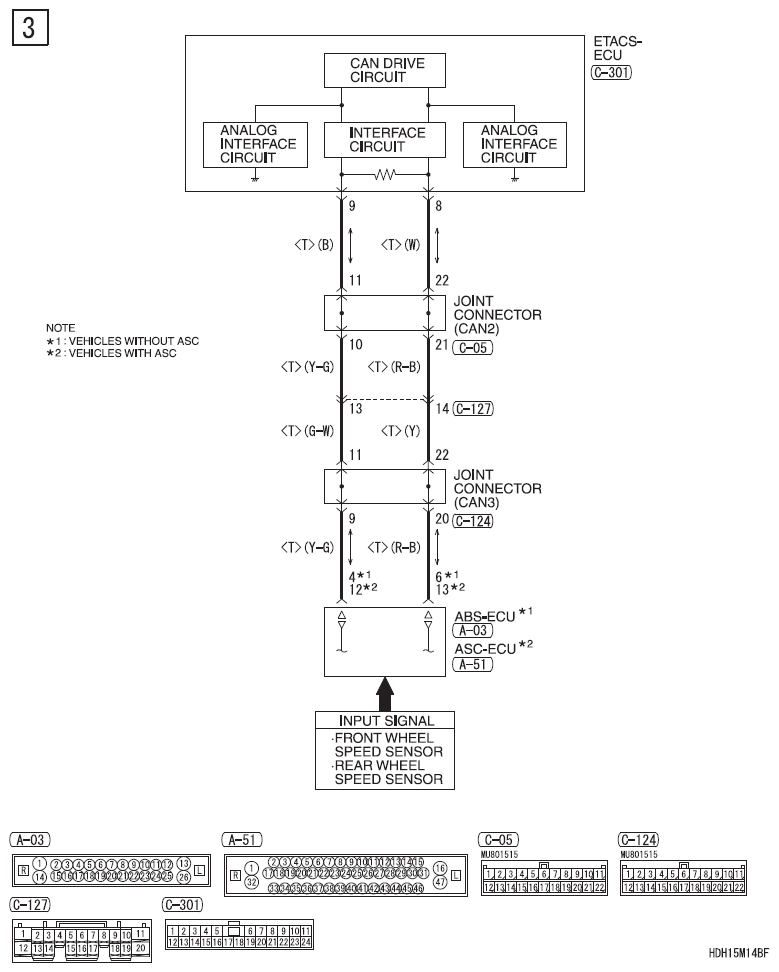

Fig 3: Parking Brake Reminder Tone Alarm - Circuit Diagram (3 Of 3)
G09620547Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
