Lancer ES Sportback
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Circuit Diagrams - Lancer & Lancer SPORTBACK
>>
Meter And Gauge (Turbo)
Meter And Gauge (Turbo)

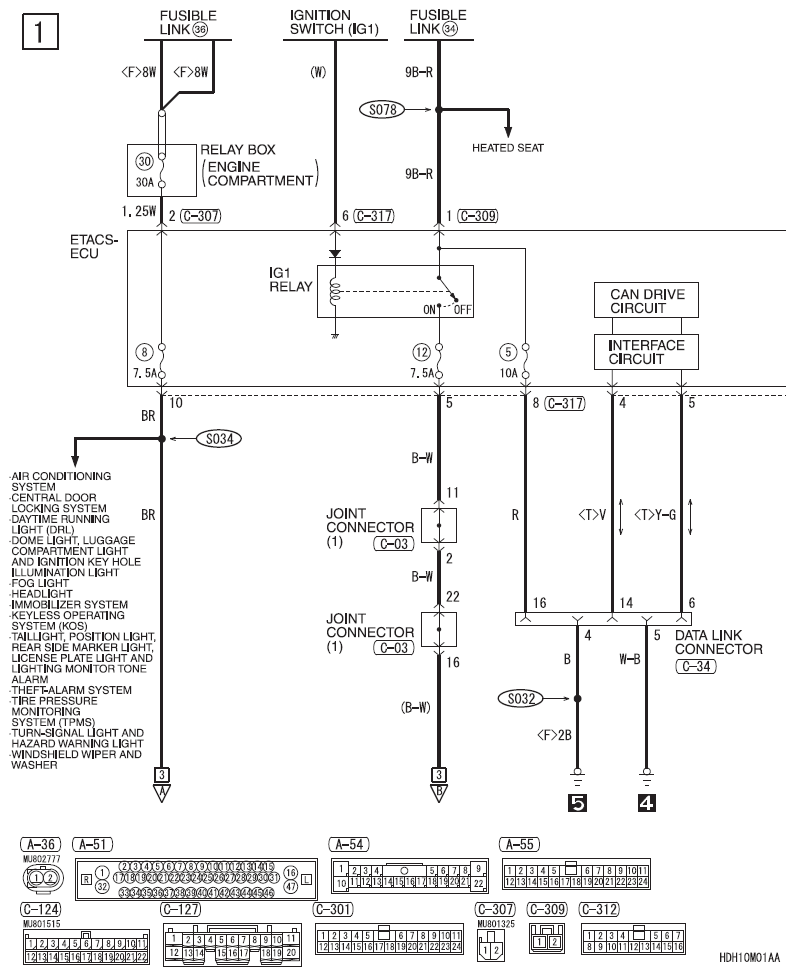

Fig 1: Meter And Gauge (Turbo) - Circuit Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

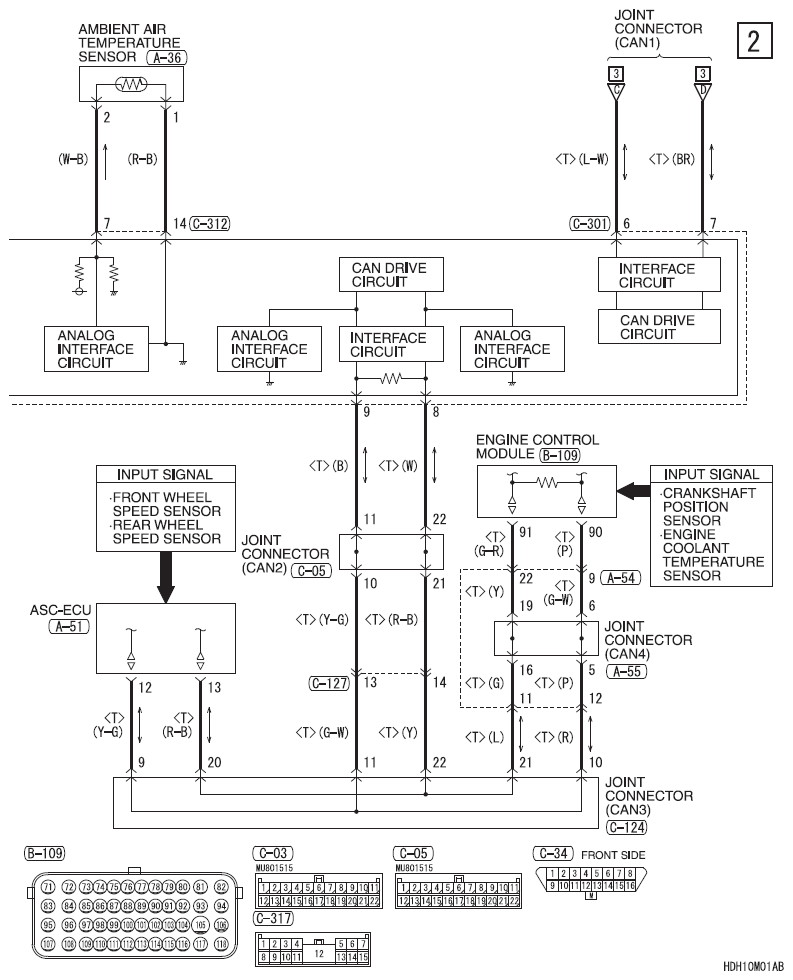

Fig 2: Meter And Gauge (Turbo) - Circuit Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

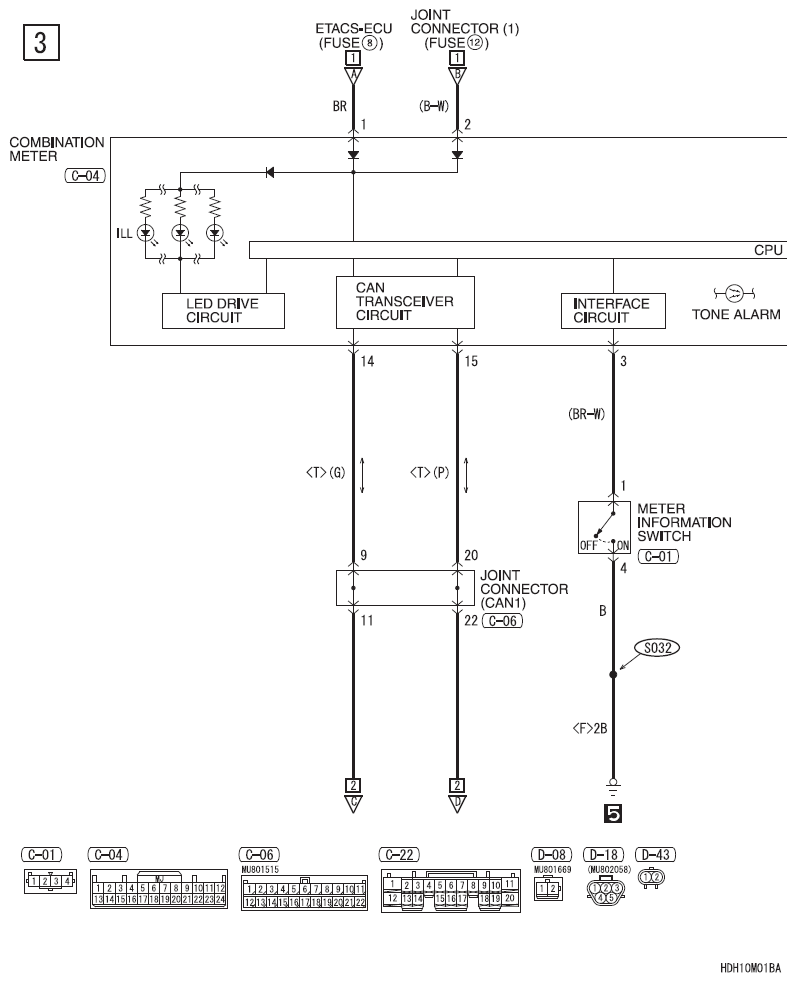

Fig 3: Meter And Gauge (Turbo) - Circuit Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

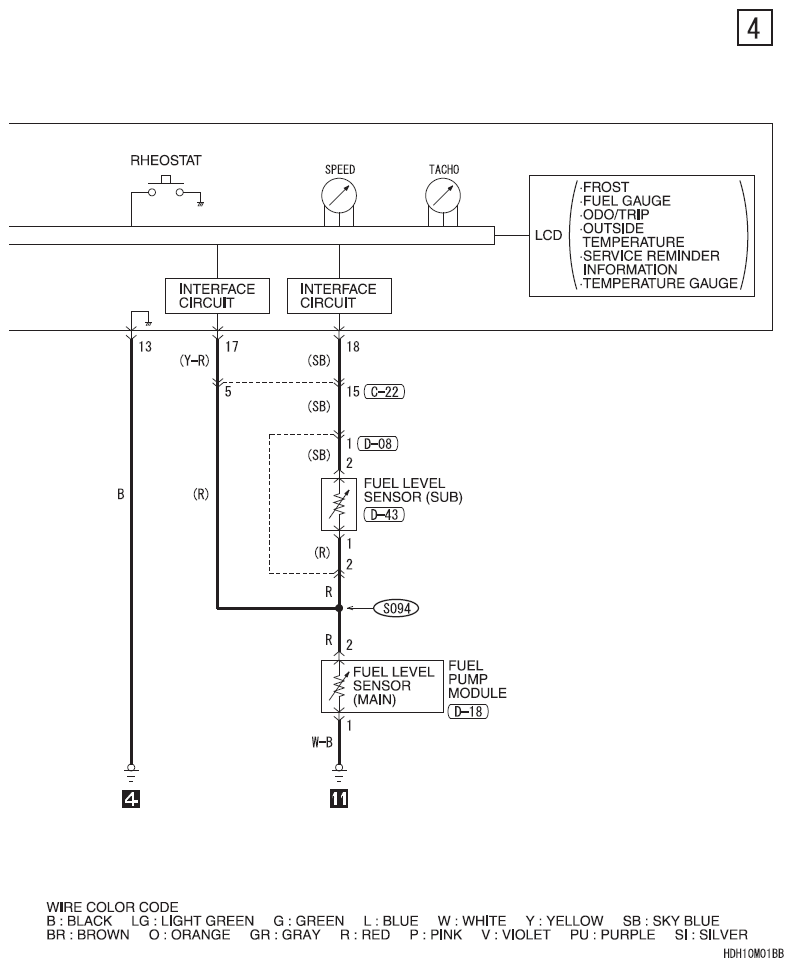

Fig 4: Meter And Gauge (Turbo) - Circuit Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
