Ignition Key Reminder Tone Alarm < Vehicles Without Kos >

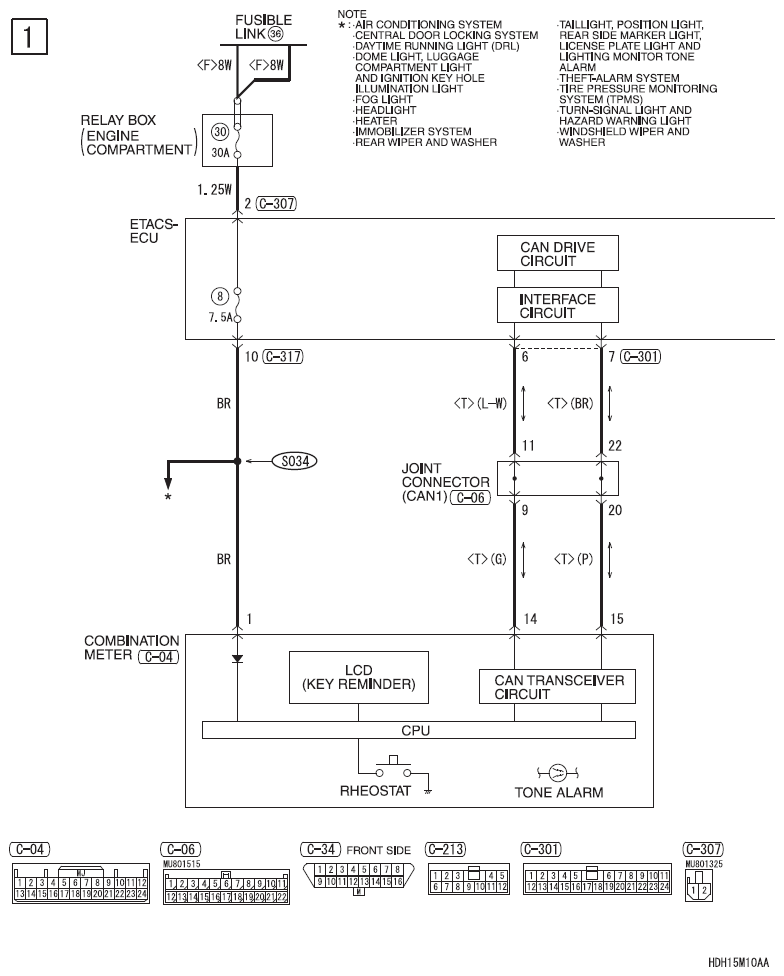

Fig 1: Ignition Key Reminder Tone Alarm (Vehicles Without KOS) - Circuit Diagram (1 Of 2)
G09620530Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Ignition Key Reminder Tone Alarm (Vehicles Without KOS) - Circuit Diagram (2 Of 2)
G09620531Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
