Door Ajar Warning Tone Alarm < Lancer SPORTBACK >
Door Ajar Warning Tone Alarm < Lancer SPORTBACK >

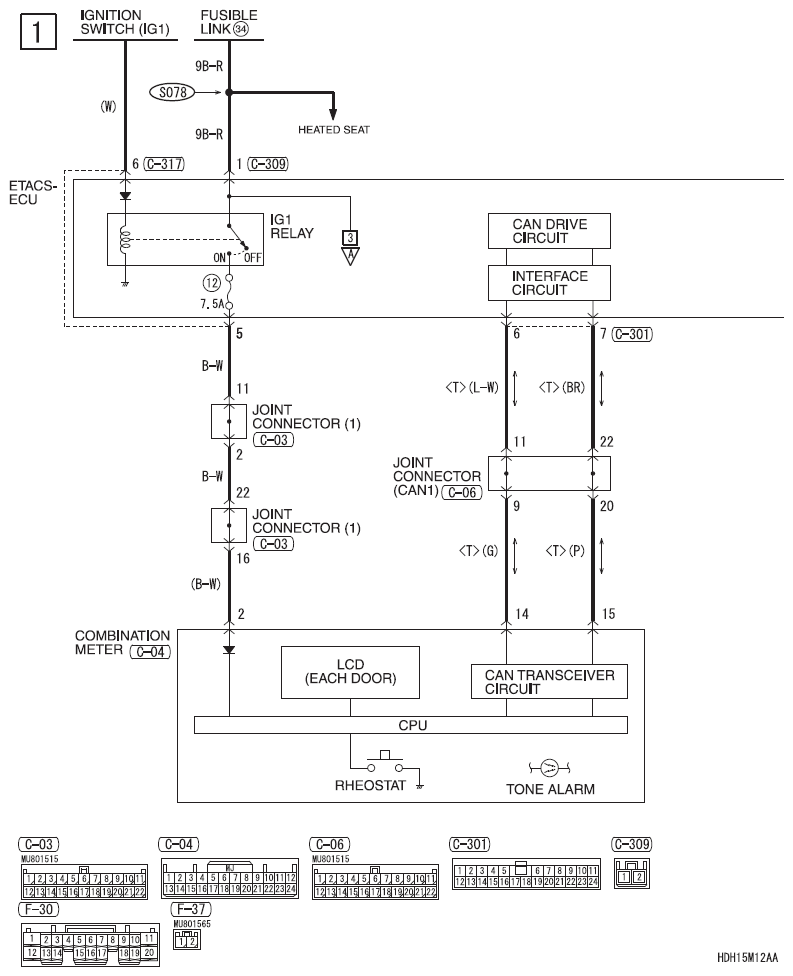

Fig 1: Door Ajar Warning Tone Alarm (Lancer Sportback) - Circuit Diagram (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

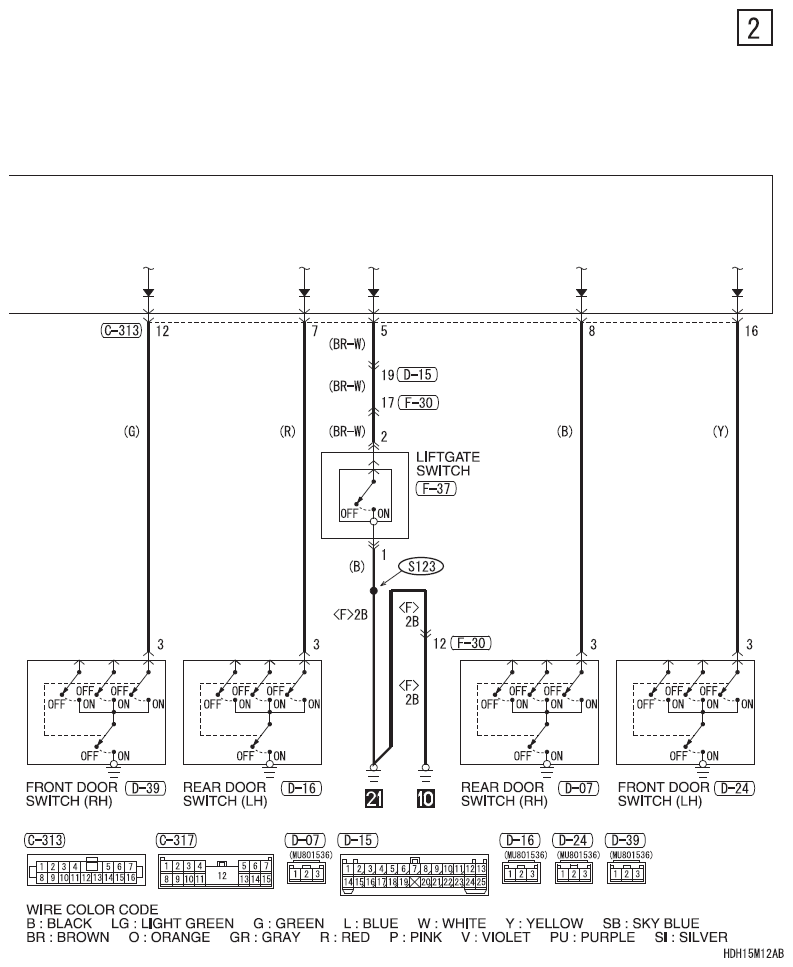

Fig 2: Door Ajar Warning Tone Alarm (Lancer Sportback) - Circuit Diagram (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

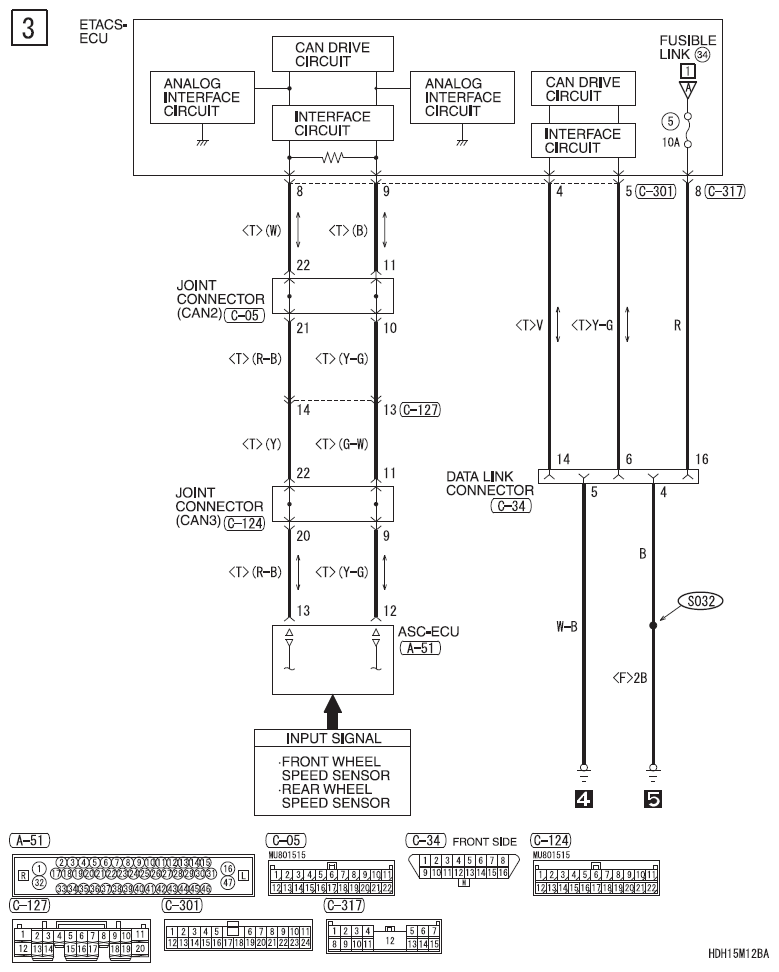

Fig 3: Door Ajar Warning Tone Alarm (Lancer Sportback) - Circuit Diagram (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
