Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light < Lancer SPORTBACK >

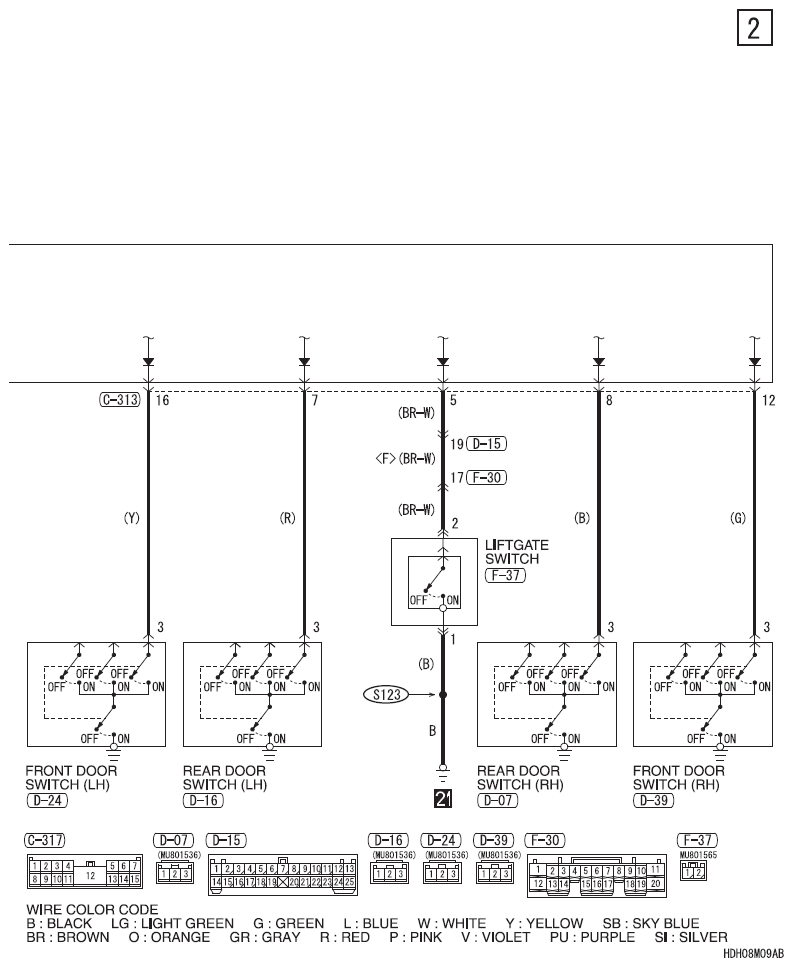

Fig 1: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

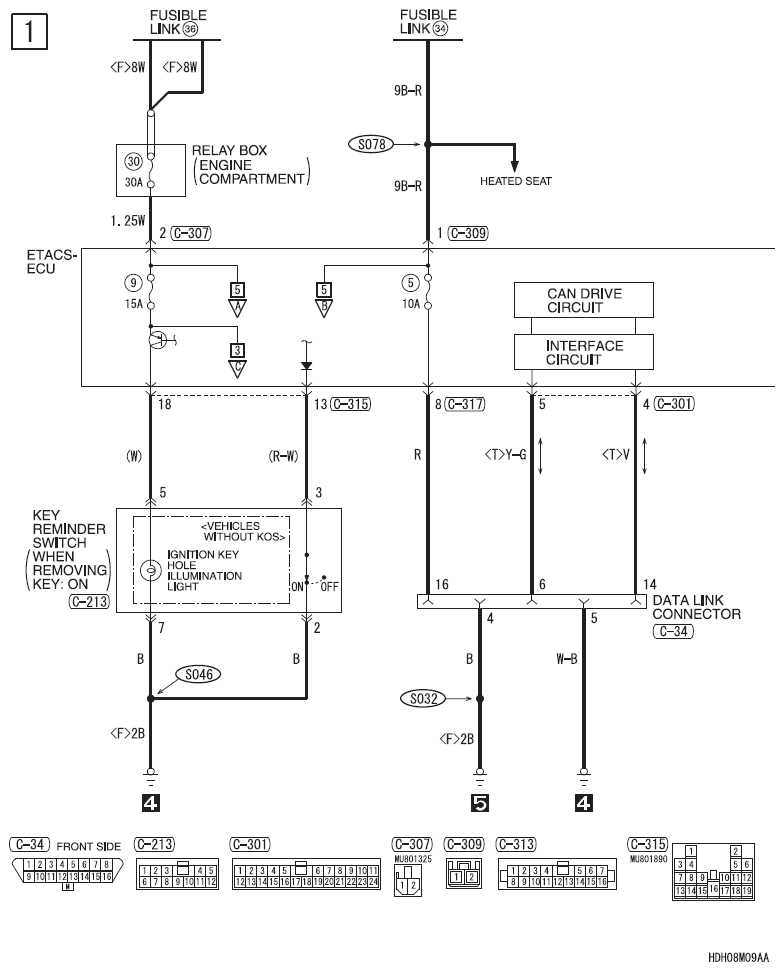

Fig 2: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

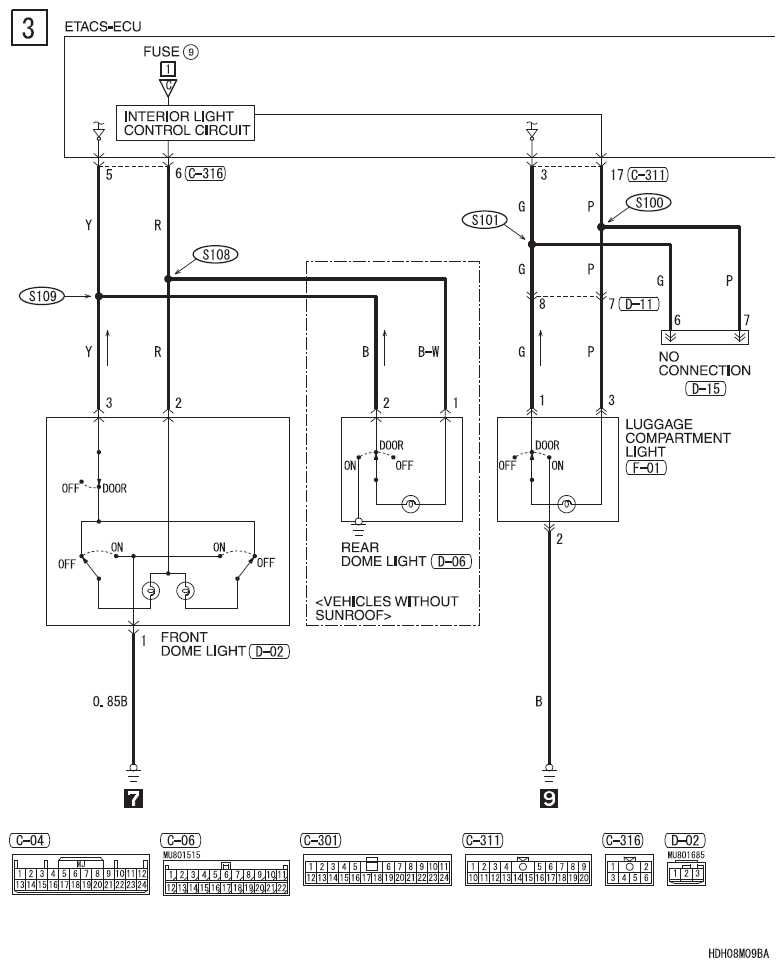

Fig 3: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

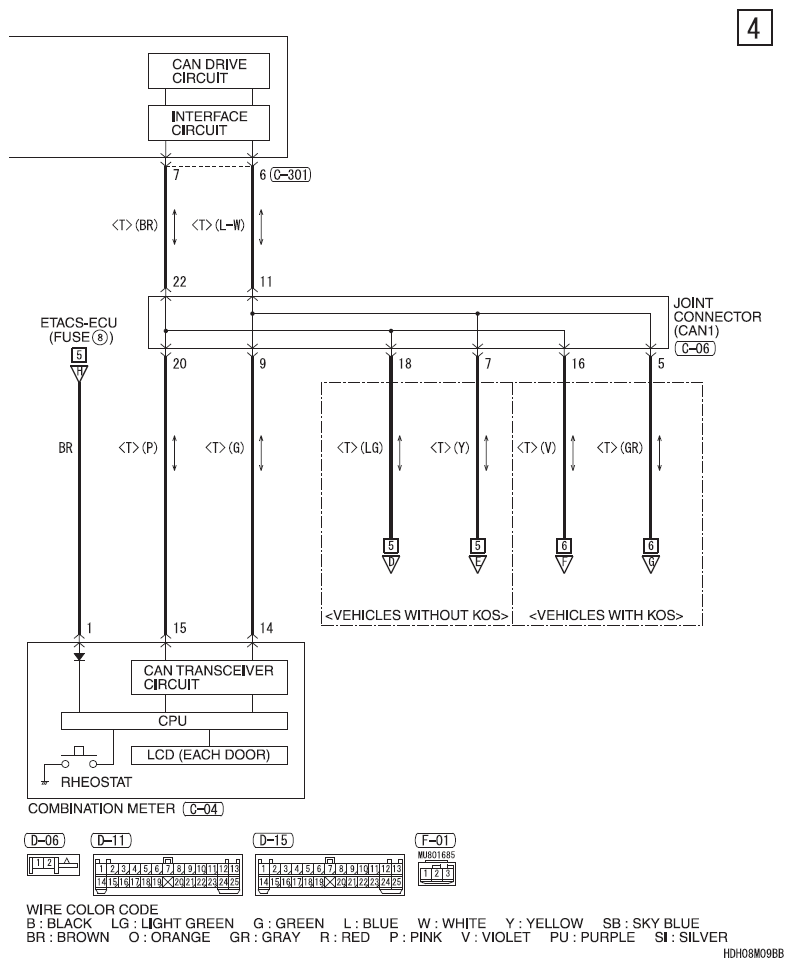

Fig 4: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

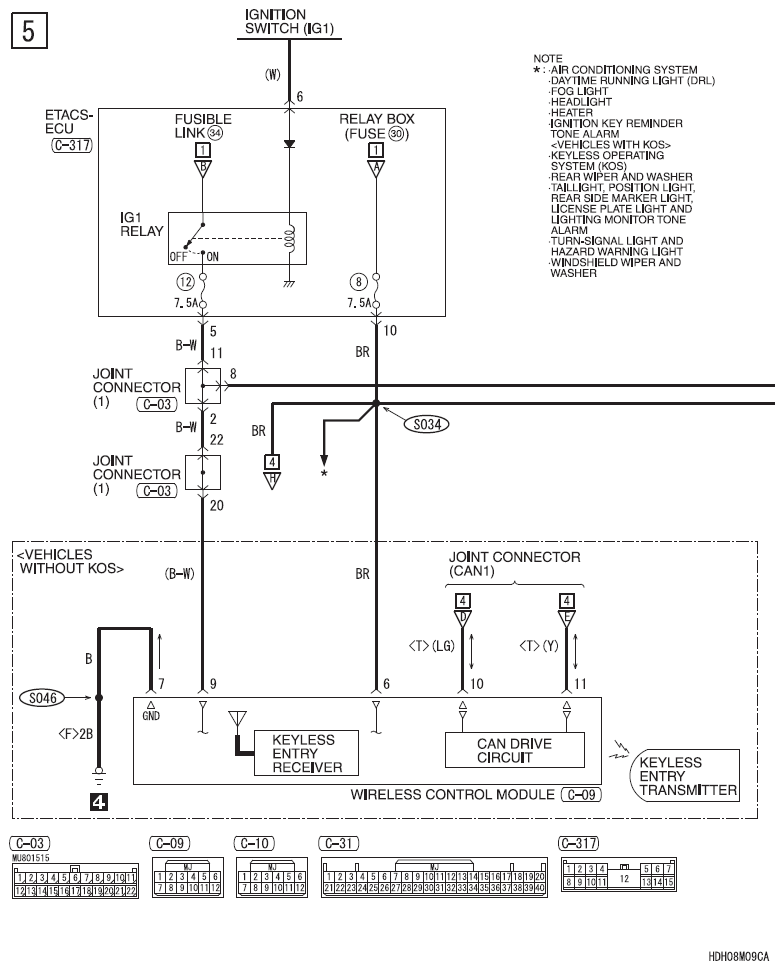

Fig 5: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

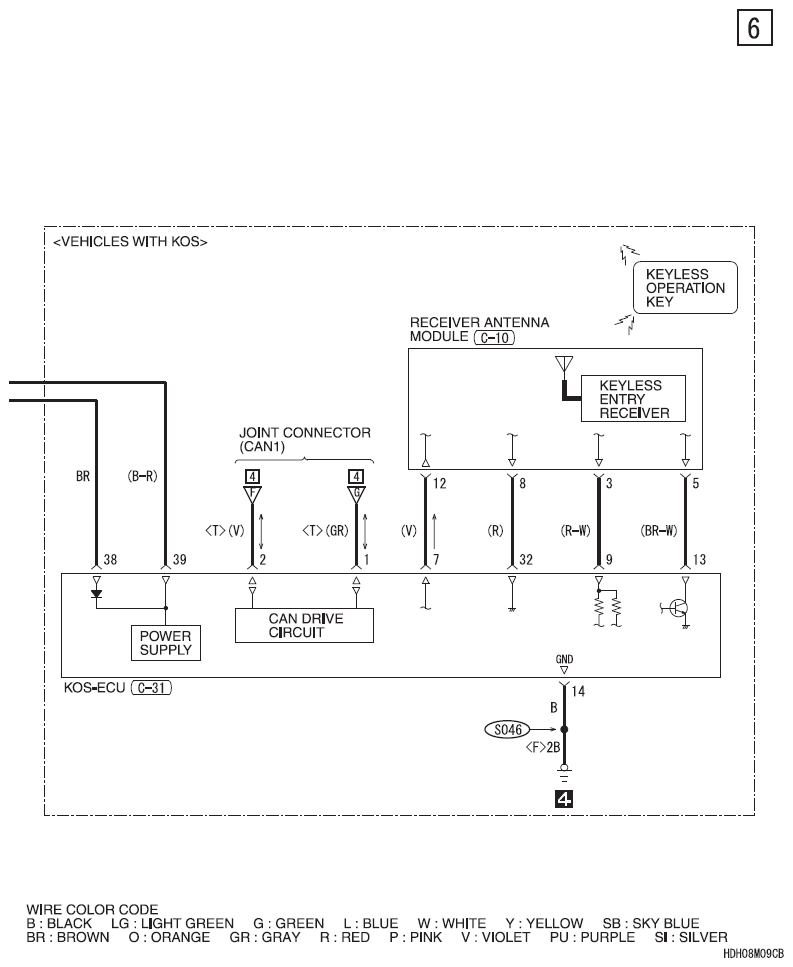

Fig 6: Dome Light, Luggage Compartment Light And Ignition Key Hole Illumination Light (Lancer Sportback) - Circuit Diagram (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
