Automatic Anti-Dazzling Mirror (Non-Turbo)

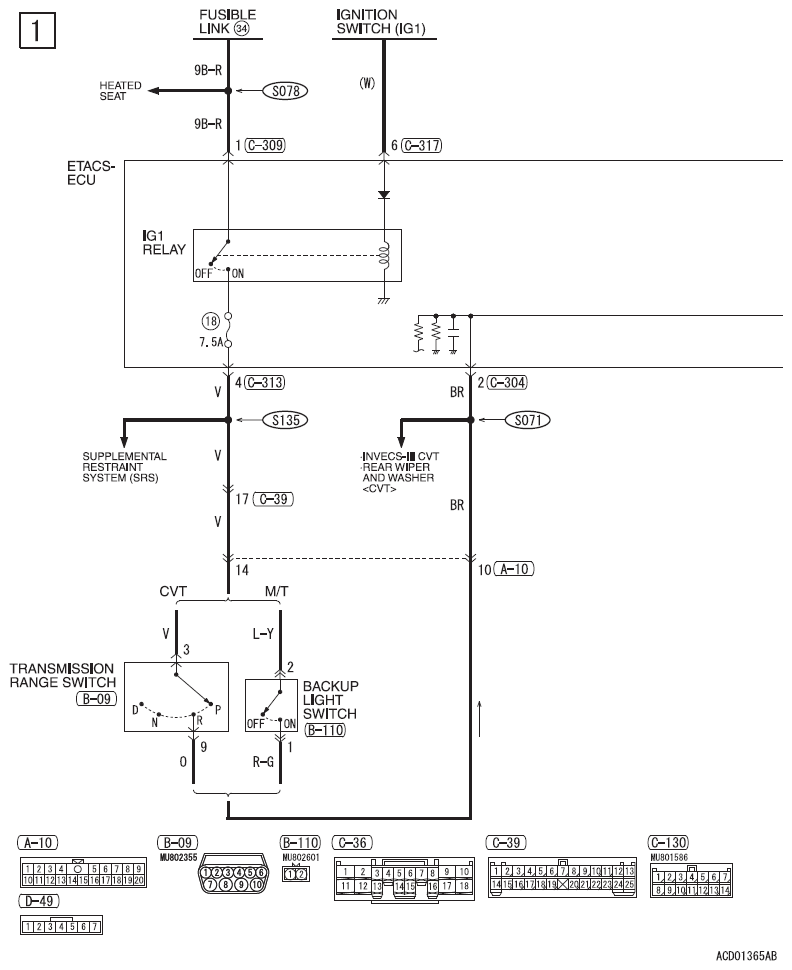

Fig 1: Automatic Anti-Dazzling Mirror (Non-Turbo) - Circuit Diagram (1 Of 2)
G09620396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

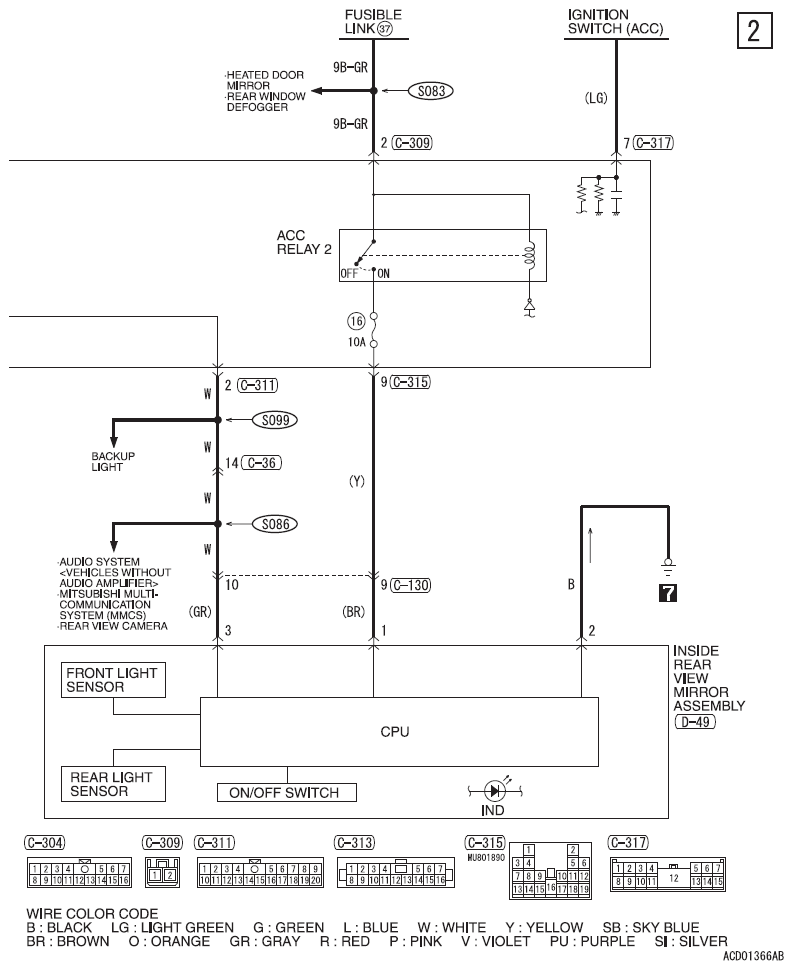

Fig 2: Automatic Anti-Dazzling Mirror (Non-Turbo) - Circuit Diagram (2 Of 2)
G09620397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
