Sunroof - With Diagnostics - Lancer
>>
Sunroof
>>
Removal And Installation
>>
< Lancer >
< Lancer >

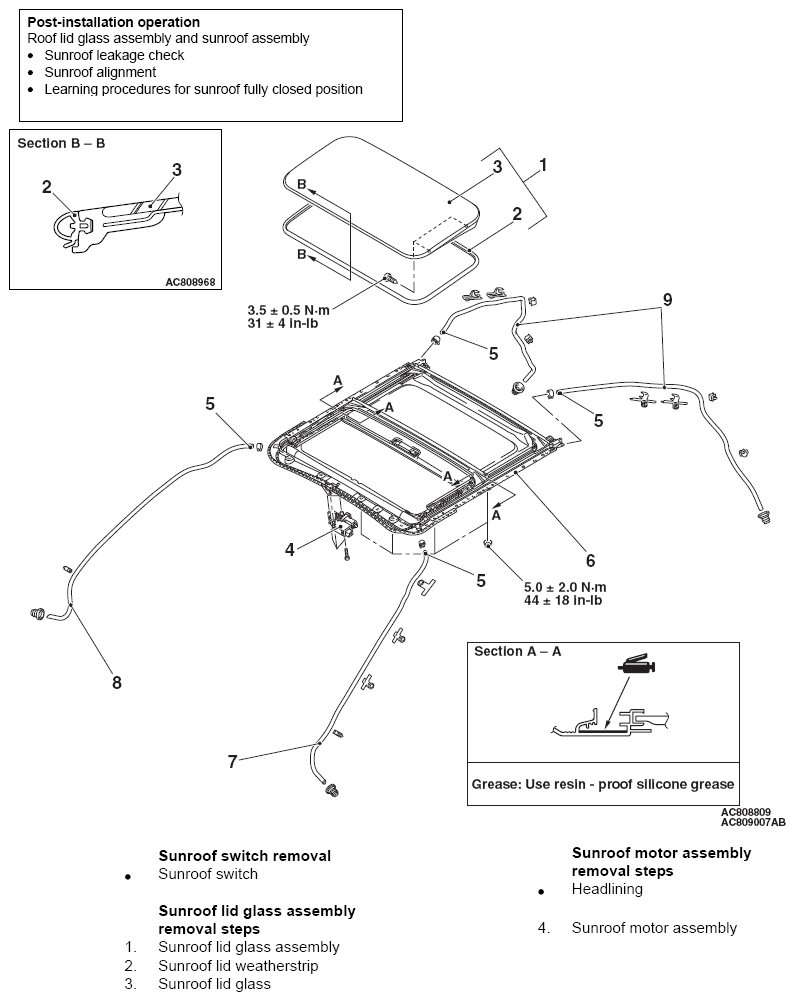

Fig 1: Sunroof Components With Torque Specification (Lancer 1 Of 2)

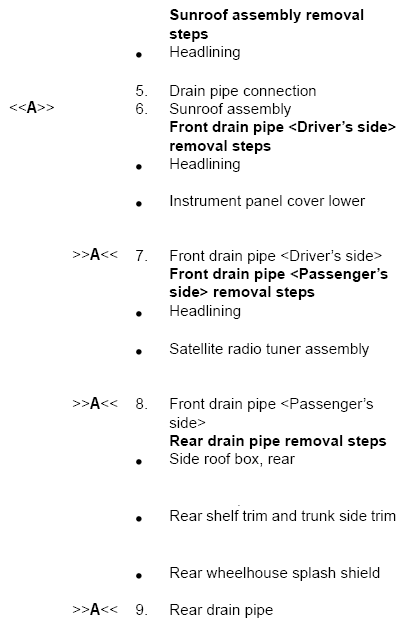

Fig 2: Sunroof Components (Lancer 2 Of 2)
