DTC B240B: PS side antenna (outdoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

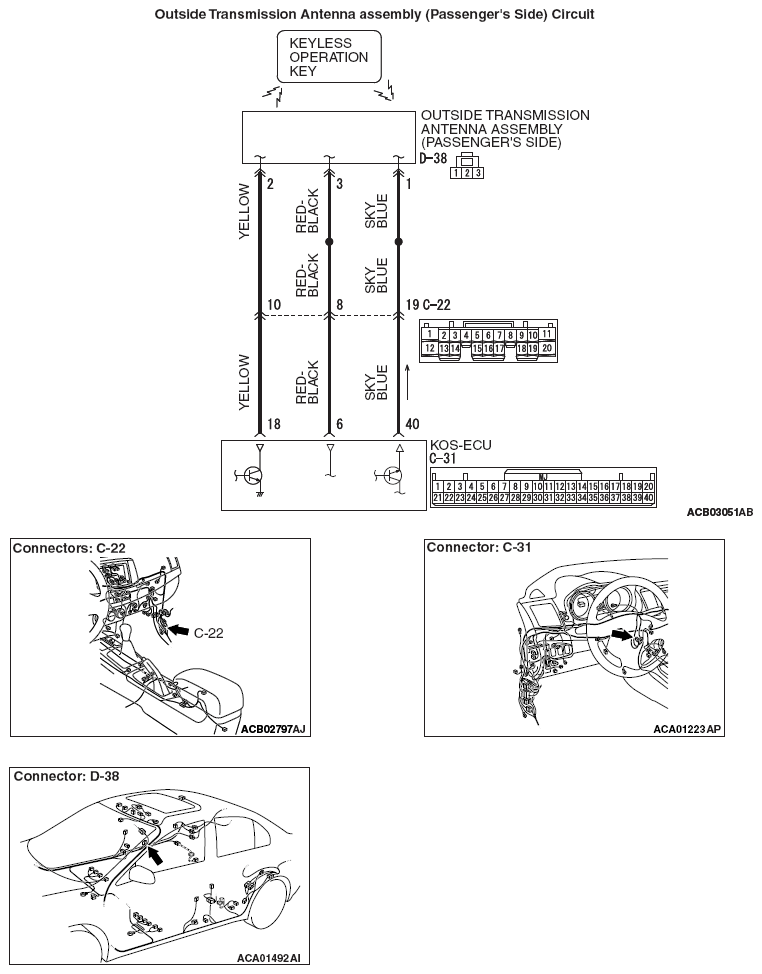

Fig 1: Outside Transmission Antenna Assembly - Circuit Diagram (Passenger Side)
G09627817Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
