< RECARO Seat >

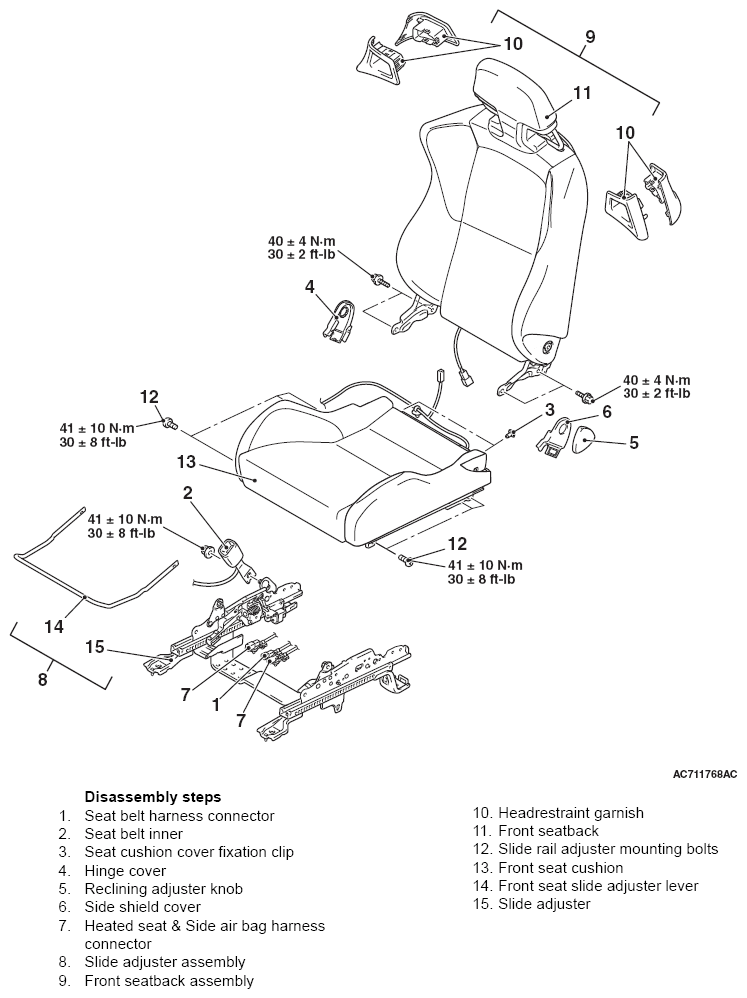

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Recaro Seat)

G09629146

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
