Horn Relay Check

Battery voltage Terminal number Normal condition
At no energization 3 - 4 No continuity
With current supply [terminal 1 (-), terminal 2 (+)] Continuity exists (2 ohms or less)

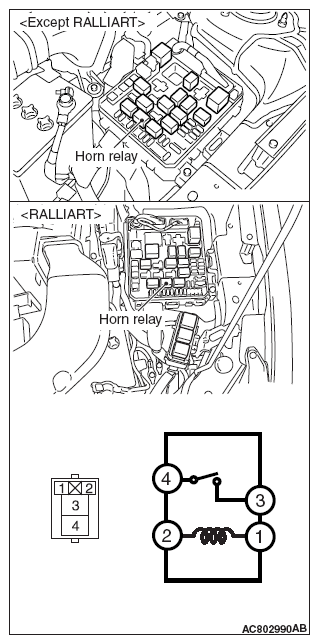

Fig 1: Checking Horn Relay
G09630179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
