Inspection Procedure 2: No sound is heard. < Vehicles with audio amplifier >: Notes

CAUTION: Before replacing the radio and CD player or audio amplifier, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

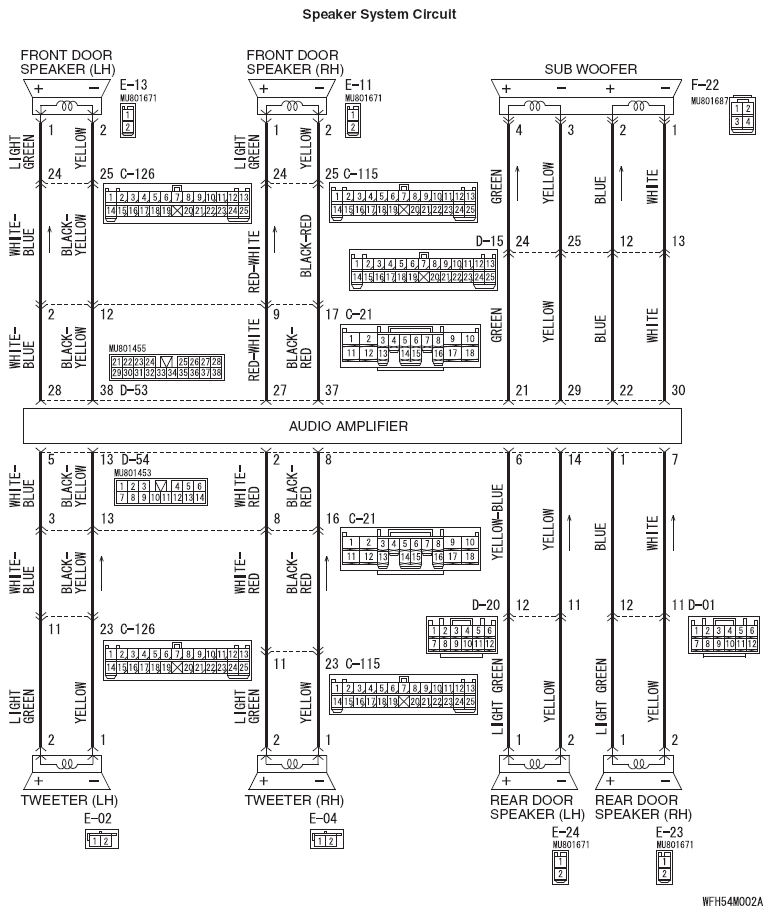

Fig 1: Speaker System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

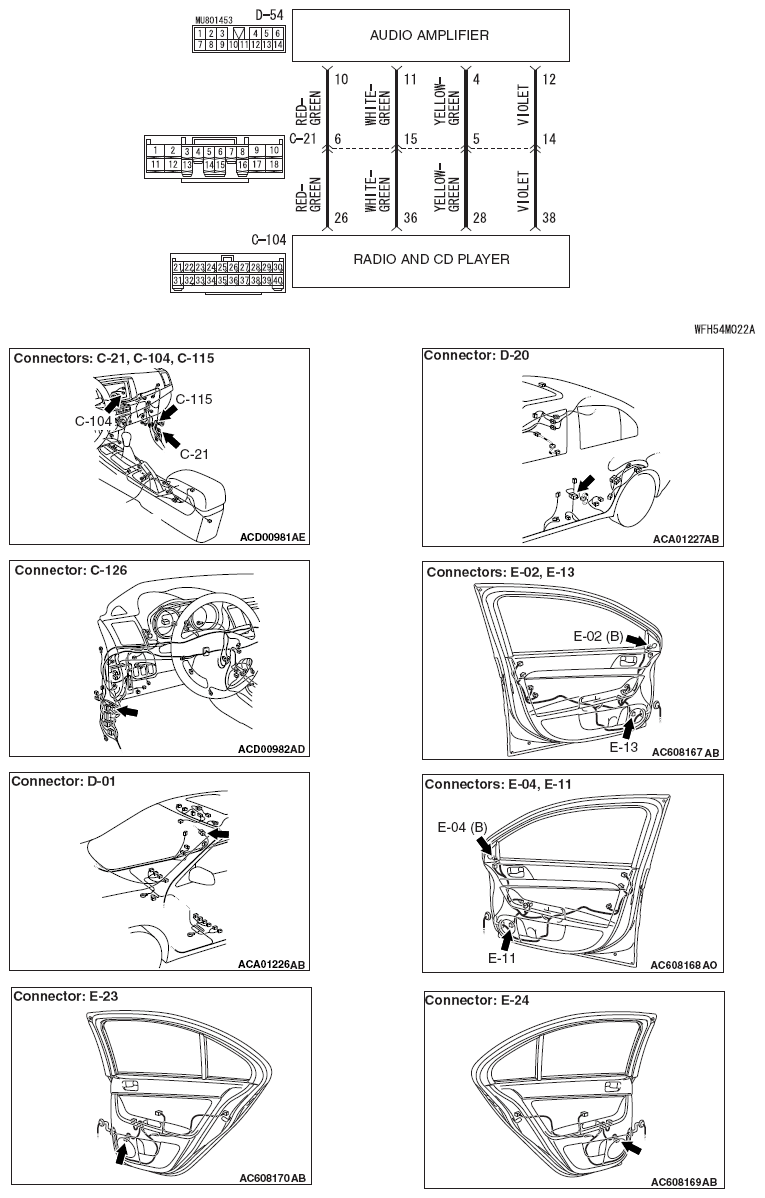

Fig 2: Locating Speaker System Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
