Second Seat Adjustment

Check that the automatic tumble mechanism works.
If the slide lock release is late, remove the reclining adjuster cover, and move the clamp position of the slide lock release cable for the automatic tumble mechanism on the side of the seat from the second recess to the first recess to adjust the slide lock release timing.
Check again that the automatic tumble mechanism works. If the slide lock timing is still late after the adjustment, replace the slide lock release cable for the automatic tumble mechanism.
If the slide lock timing is still late after the slide lock release cable for the automatic tumble mechanism is replaced, replace the seat.

Fig 1: Locating Adjuster Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Slide Lock Release Cable For Automatic Tumble Mechanism
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the automatic tumble mechanism is normal, lock the sliding and turn up the seat cushion pad. Then, check that the clearance between the slide lock claw and the second seat folding adjuster is approximately 3 mm (0.1 in).

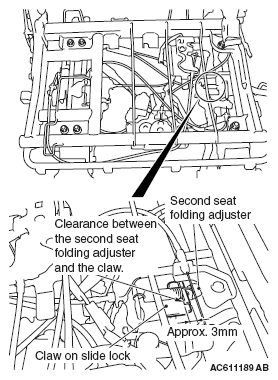

Fig 3: Checking Clearance Between Slide Lock Claw And Second Seat Folding Adjuster Is Approximately 3 mm (0.1 in)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the clearance between the second seat folding adjuster and the slide lock claw is 5 mm (0.2 in) or more, loosen the bolts shown in the illustration and fix them at the position where the clearance is approximately 3 mm (0.1 in).

Fig 4: Locating Second Seat Folding Adjuster And Slide Lock Claw Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
