Mitsubishi
>>
2013
>>
Outlander ES
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Interior
>>
Seat Assembly
>>
Second Seat Assembly
>>
Removal And Installation
Removal And Installation

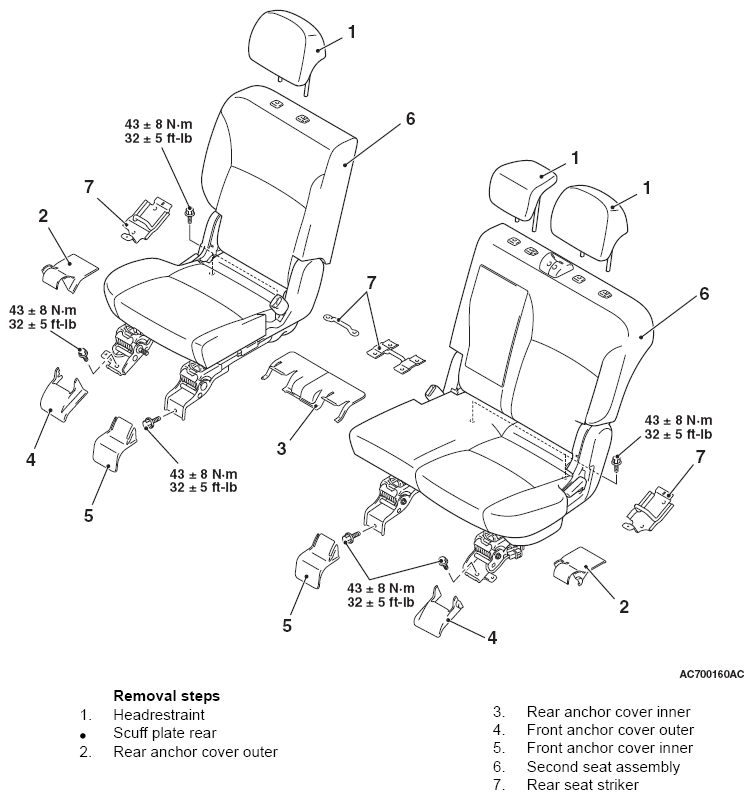

Fig 1: Second Seat Assembly Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
