Disassembly And Assembly< Second Seat (RH) >

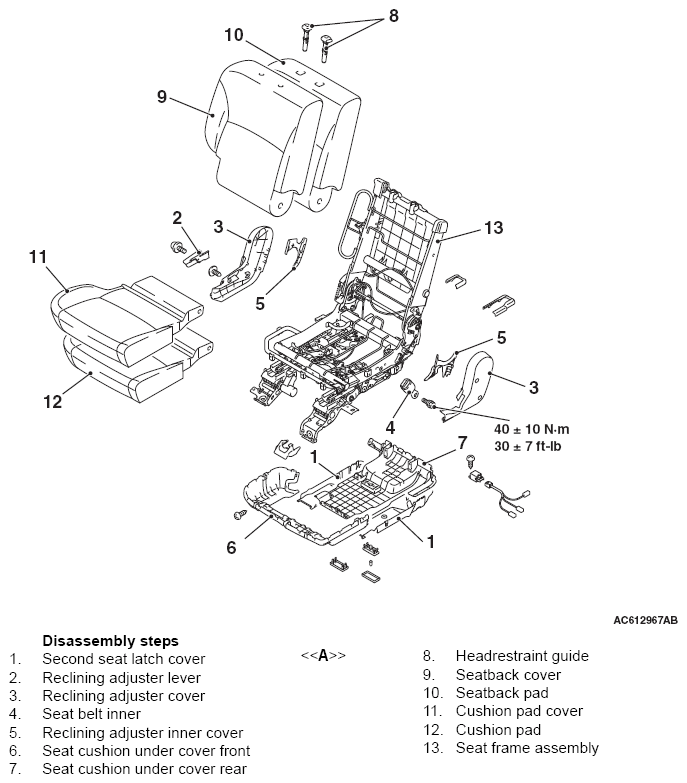

Fig 1: Second Seat Assembly Disassembly And Assembly With Torque Specifications - Second Seat (RH)

G07044493

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
