Disassembly And Assembly< Second Seat (LH) >

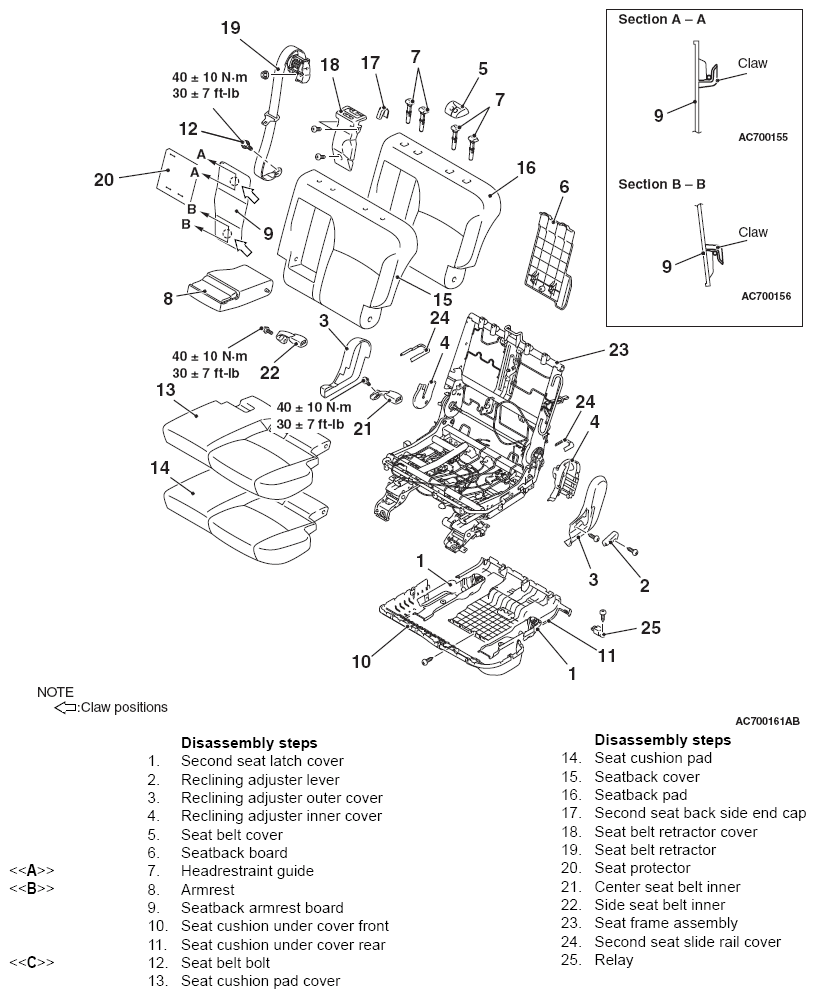

Fig 1: Second Seat Assembly Disassembly And Assembly With Torque Specifications - Second Seat (LH)

G07044489

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
