Seat Cushion Heater Inspection

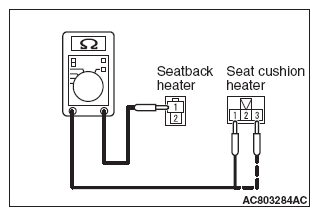

Measure the resistance between the terminals.
Standard value: At room temperature 20°C (68°F)
TERMINALS RESISTANCE REFERENCE CHART
| Terminal number | Standard value |
|---|---|
| Seat cushion heater (Terminal No. 1) - Seatback heater (Terminal No. 1) | 0.198 to 0.242 Ω |
| Seat cushion heater (Terminal No. 3) - Seatback heater (Terminal No. 1) | 4.13 to 5.03 Ω < Thermostat: ON > |
| 3.93 to 4.79 Ω < Thermostat: OFF > |
