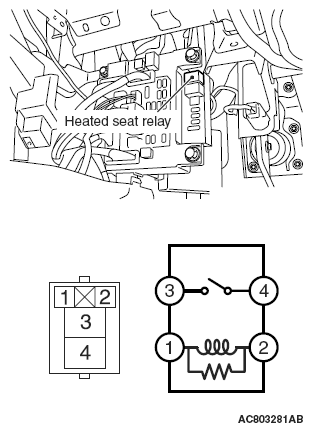

Inspection Of The Heated Seat Relay For Continuity
TERMINALS CONTINUITY REFERENCE CHART
| Battery voltage |
Terminal number |
Normal value |
| At no energization |
3 - 4 |
No continuity |
| At energization (terminal 2 (+) - terminal 1 (-)) |
Continuity exists (2 Ω or less). |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
