Home >> Mitsubishi >> 2013 >> Outlander ES >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Interior >> Seat Assembly >> Disassembly And Assembly >> < Passenger's Seat >

< Passenger's Seat >

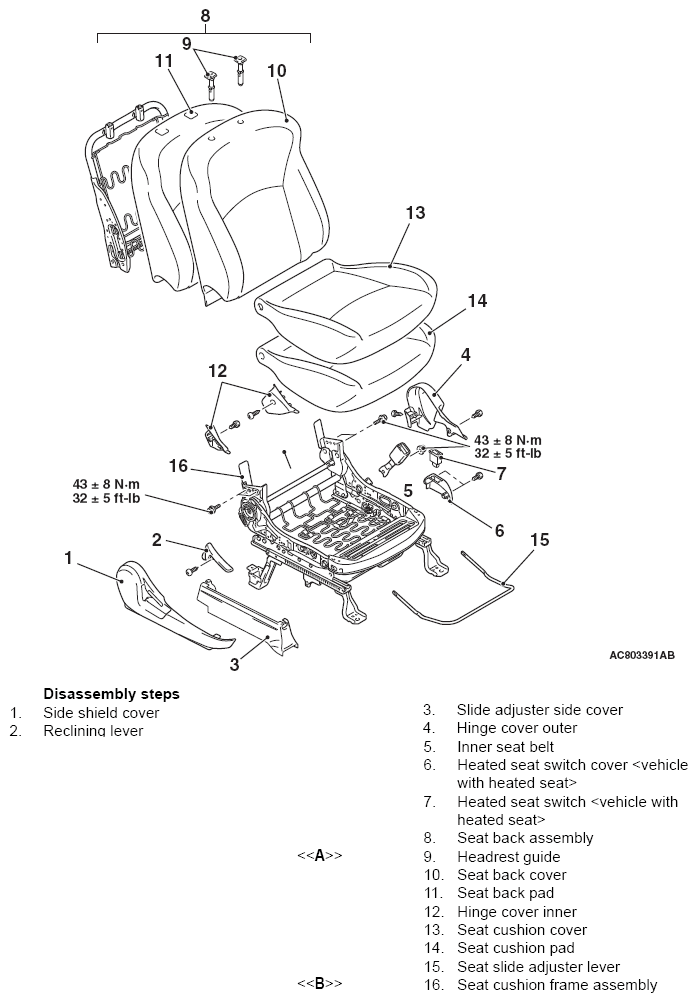

Fig 1: Front Seat Assembly Disassembly And Assembly With Torque Specifications (Passenger's Seat)

G07044478

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
