(Driver's Seat)
(Driver's Seat)

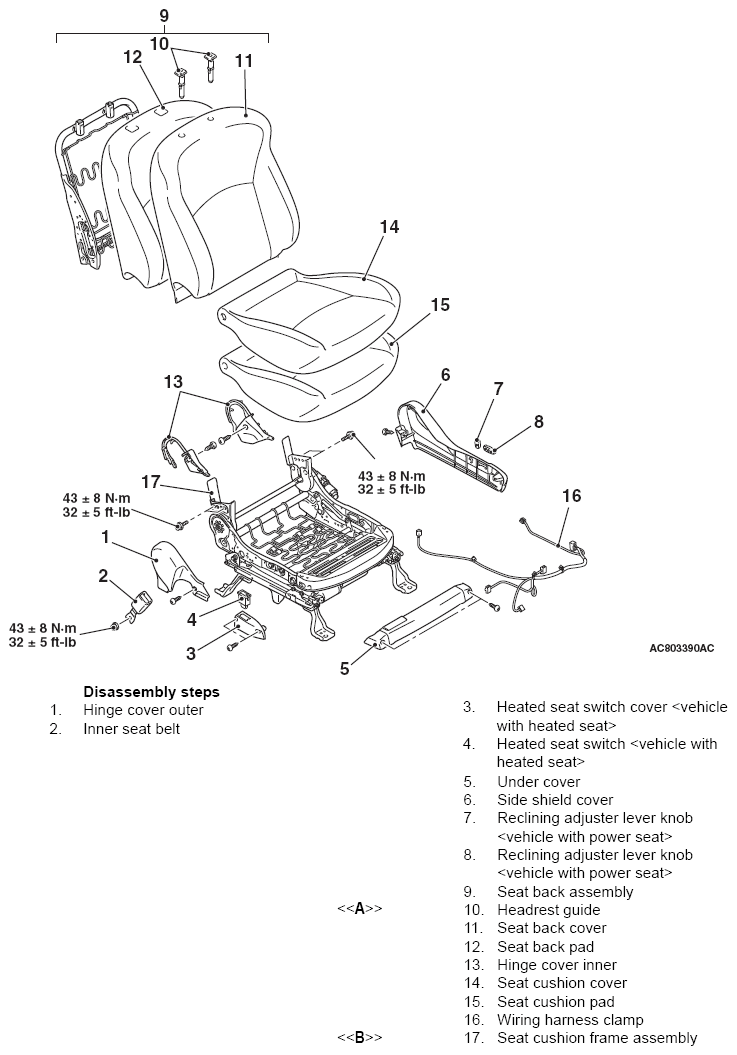

Fig 1: Front Seat Assembly Disassembly And Assembly With Torque Specifications (Driver's Seat)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
