Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Alarm >> Removal And Installation >> Sensor

Removal And Installation: Sensor

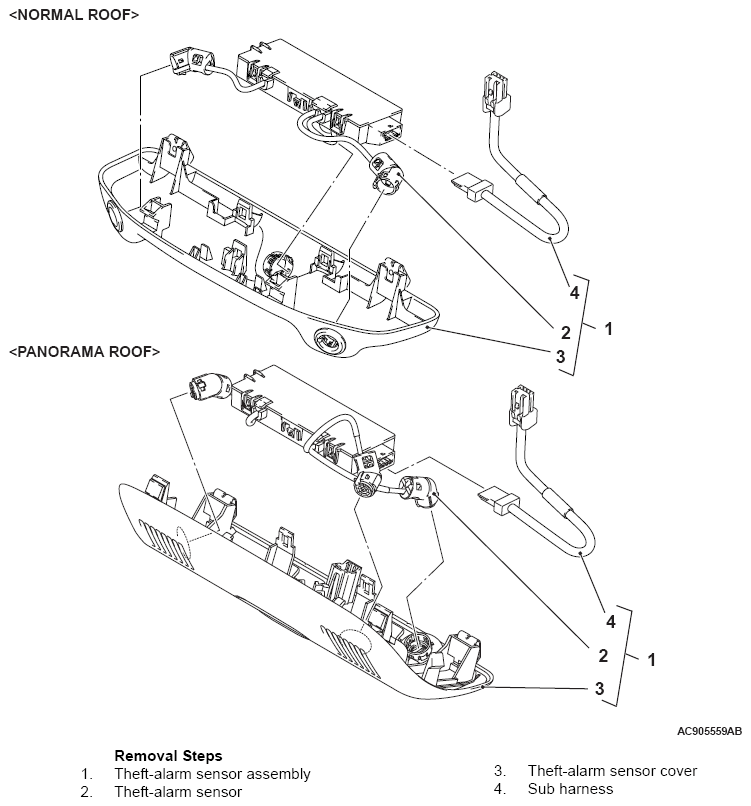

Fig 1: Removing/Installing Identifying Theft Alarm Sensor

G07050240

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
