<< B >> Center Pillar Trim Cap/Quarter Trim Upper Cap Removal

Remove the opening trim. Remove the trim cap by inserting the special tool ornament remover (MB990784) between the trim and body as shown in the illustration.

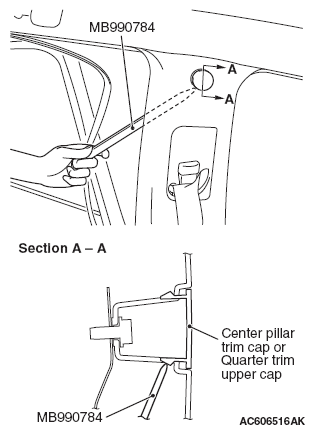

Fig 1: Removing Trim Cap
G07049314Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
