Clip And Claw Positions

NOTE: For additional service information, refer to TSB A-PILLAR TRIM REPLACEMENT PROCEDURE - SERVICE MANUAL REVISION .

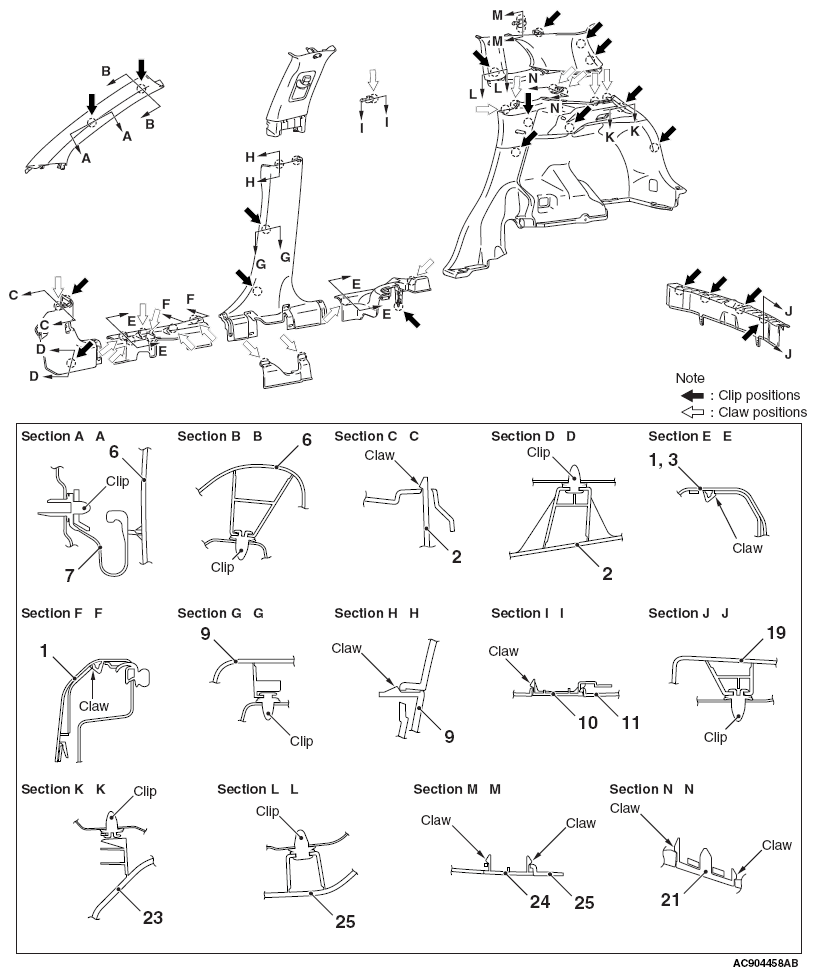

Fig 1: Identifying Clip And Claw Position

G07049312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Each number in the illustration indicates a part number.
