Fuel Tank
>>
Removal And Installation < AWD >
>>
< Fuel Tank >
< Fuel Tank >

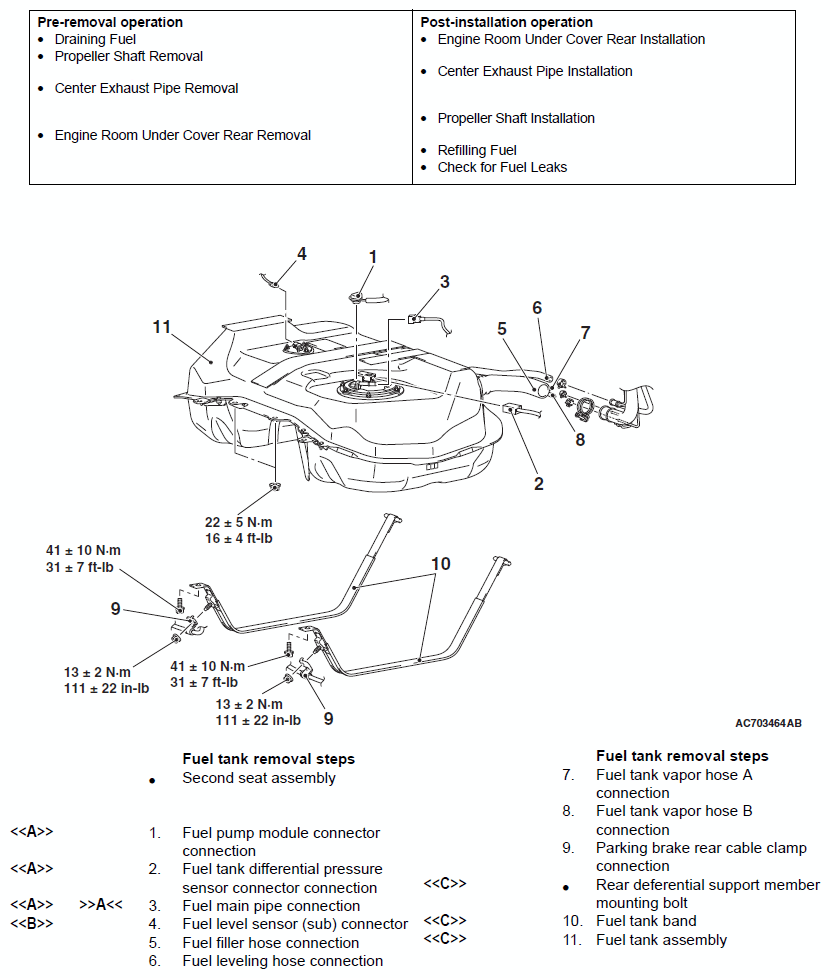

Fig 1: Fuel Tank Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
