DTC B1201: Abnormal fuel information: Notes

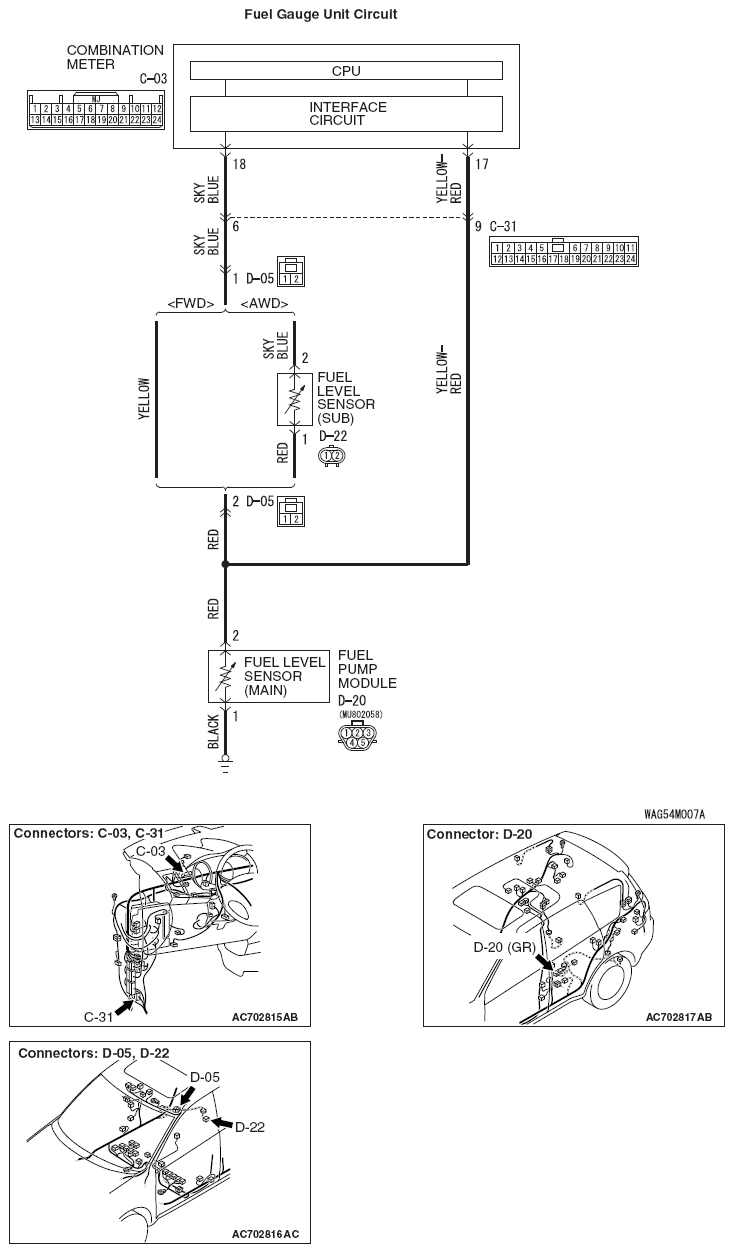

Fig 1: Fuel Gauge Unit Circuit Diagram
G07044533Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
