<< B >> Upper Center Pillar Trim Cap Removal

Remove the opening trim. Remove the upper center pillar trim cap by inserting the special tool MB990784 between the upper center pillar trim and body as shown in the illustration.

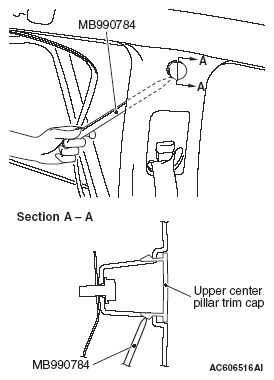

Fig 1: Removing Upper Center Pillar Trim Cap Using Tool
G05384602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
