<< A >> Front/Rear Pillar Trim Removal < Vehicles With Curtain Air Bag >

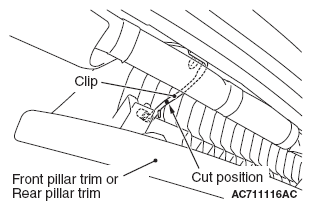

- Pull down the front or rear pillar trim as shown in the illustration.
- Cut the clip at the cutting position shown in the illustration, taking care not to damage the other components.
- Remove the clip remaining on the front or rear pillar trim, taking care not to scratch the trim.
- Remove the clip remaining on the vehicle side by breaking it to prevent damage to the flange of the clip mounting hole.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
