Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SERVICE PRECAUTIONS and SEAT BELT WITH PRE-TENSIONER .

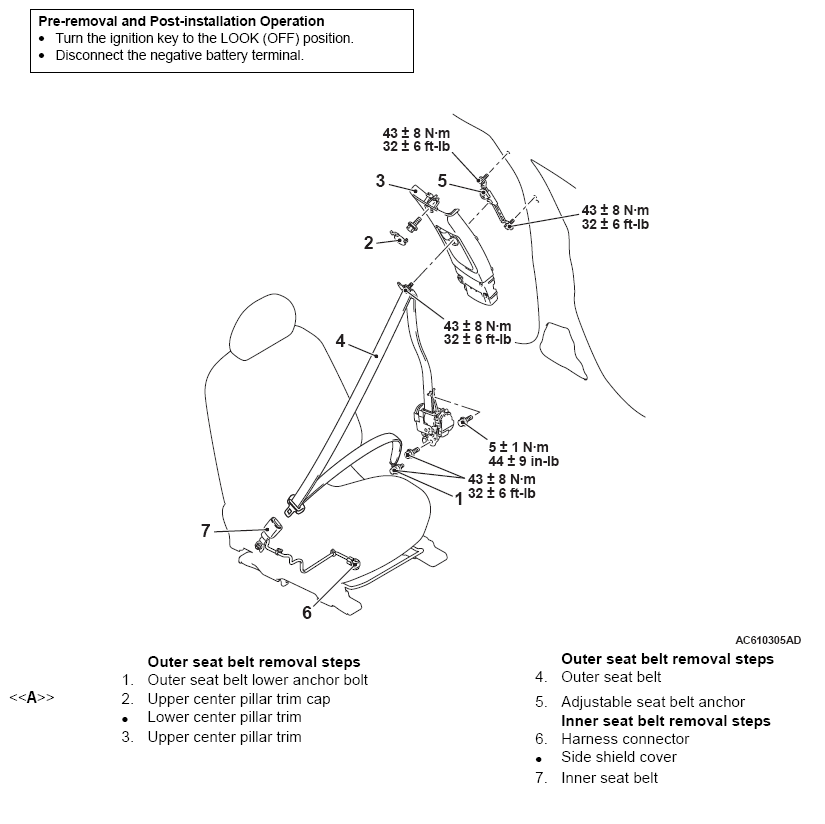

Fig 1: Front Seat Belt Components With Torque Specifications
G08295057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
