Lancer: Split Seat

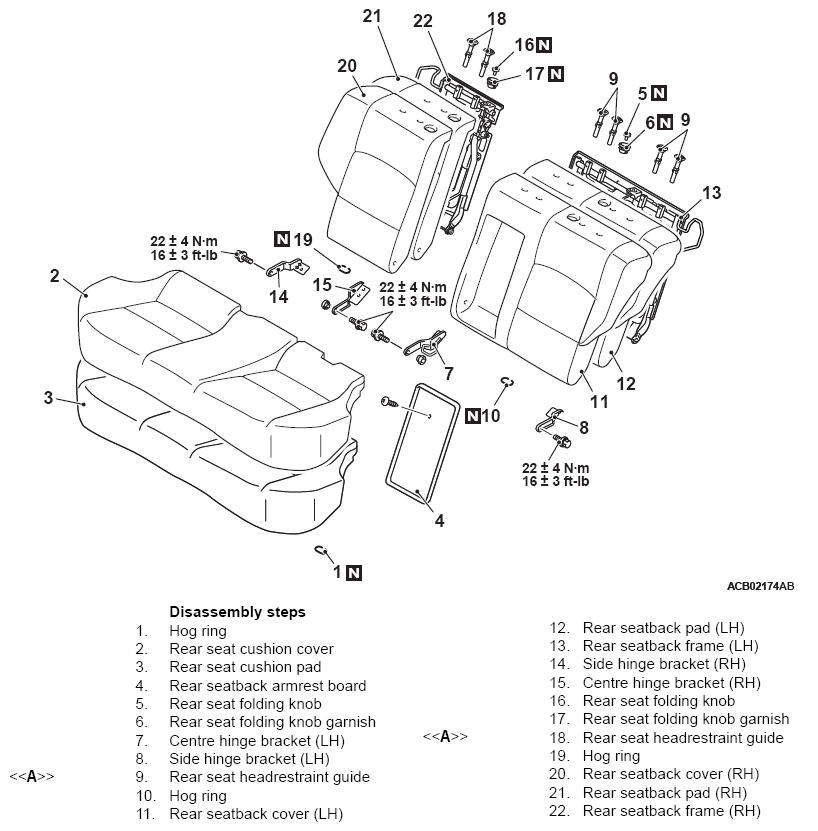

Fig 1: Disassembly Steps Of Rear Seat Assembly With Torque Specifications (Lancer Split Seat)

G08295053

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
