Standard Seat, Sport Seat

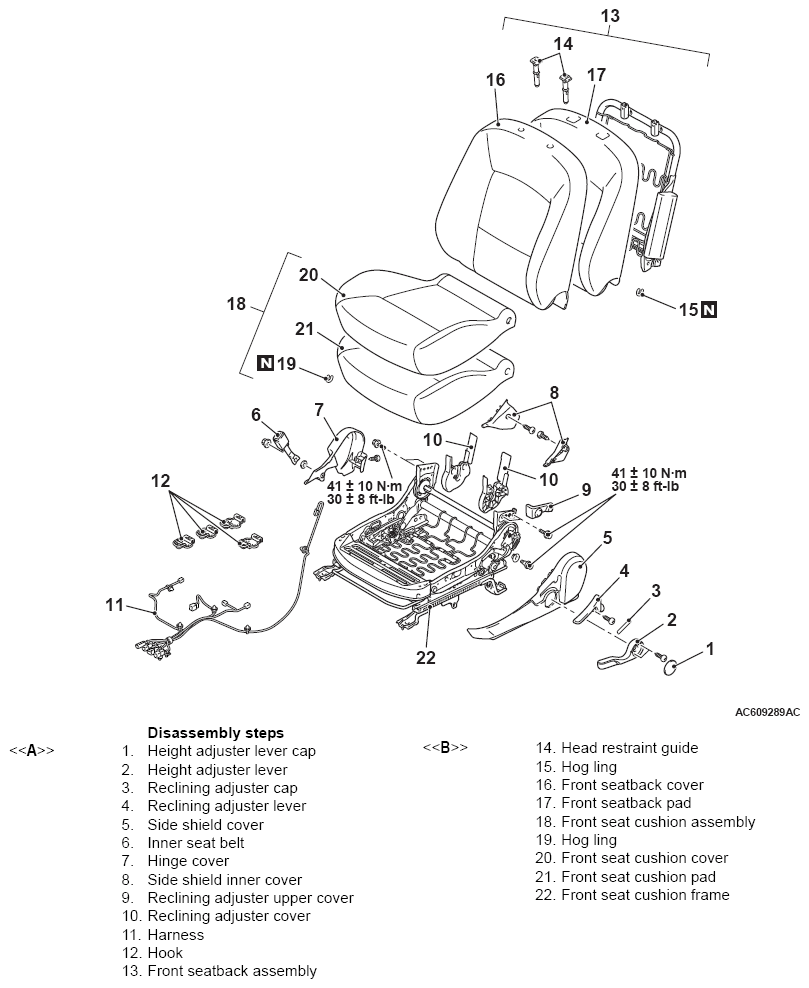

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Standard Seat, Sport Seat)
G08295040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
