RECARO Seat

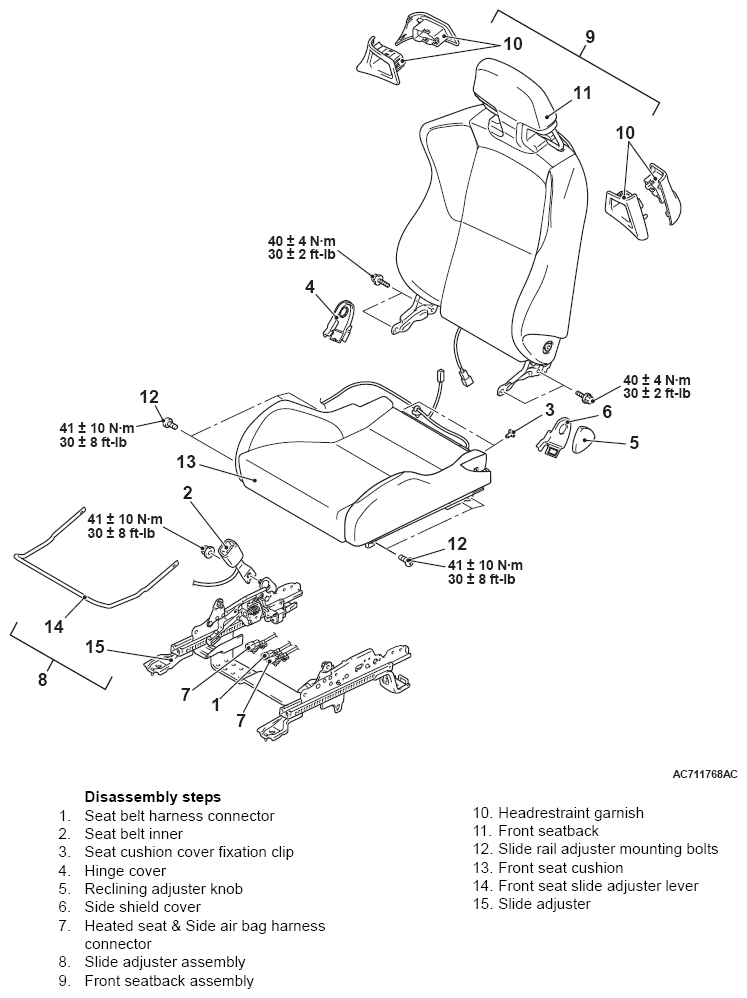

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Recaro Seat)
G08295041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
