Heated Seat Relay Continuity Check

Remove the instrument lower cover.
Remove the junction block mounting and slide the junction block to check the heated seat.

VOLTAGE SPECIFICATION

Battery voltage	Tester connection	Specified condition
Not applied	1-4	Open circuit
Connect terminal 3 to the positive battery terminal Connect terminal 2 to the negative battery terminal	1-4	Less than 2 ohms

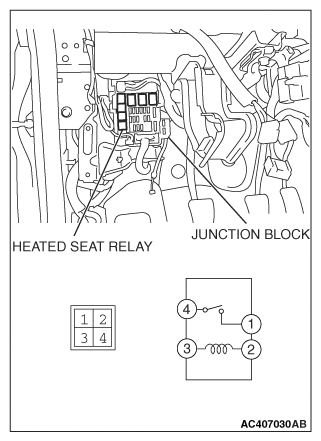

Fig 1: Locating Heated Seat Relay And Junction Block

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
