>>F<< 5TH Drive Gear Mounting Lock Nut Installation

  1. Using special tool MD998802, lock the input shaft.
    Fig 1: Locking Input Shaft Using Special Tool MD998802
    G06672115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the 5th drive gear mounting lock nut from output shaft assembly.
  3. Tighten the 5th drive gear mounting lock nut to the specified torque.

    Tightening torque: 123 ± 36.9 N.m (91 ± 26 ft-lb)

  4. Stake the 5th gear mounting lock nut.

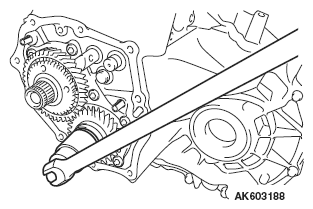

    Fig 2: Tightening 5th Drive Gear Mounting Lock Nut
    G06672116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
