>>C<< Reverse Shift Arm Bracket Assembly Installation

Fit the arm tip of the reverse shift fork into the mating slot in the reverse shift arm bracket assembly.

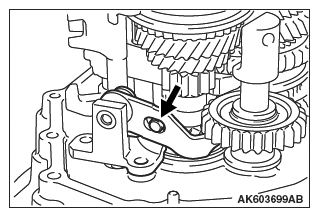

Fig 1: Locating Mating Slot In Reverse Shift Arm Bracket Assembly
G06672108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
