>>A<< Reverse Idler Gear, Reverse Idler Thrust Washer And Reverse Idler Shaft Installation

  1. Install the reverse idler gear, reverse idler thrust washer and reverse idler shaft.

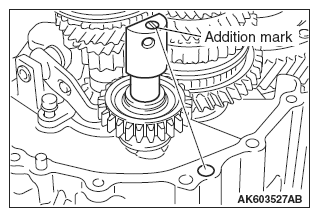

  2. Before installing the transaxle case assembly, confirm that the reverse idler gear addition mark is positioned as show in the illustration.
    Fig 1: Identifying Addition Mark On Reverse Idler Gear
    G06672105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
