Transaxle Oil Replacement

Remove the filler plug and gasket.
Remove the drain plug and gasket, and drain the oil.
Tighten the drain plug and new gasket, to the specified torque.
Tightening torque: 49 ± 19 N.m (37 ± 14 ft-lb)

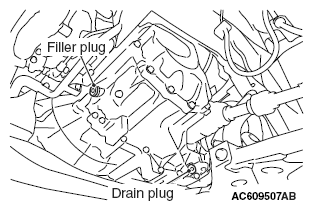

Fig 1: Identifying Filler Plug And Drain Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fill with DiaQueen NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80 until the level comes to the lower portion of filler plug hole.
Quantity: 2.5 dm ³ (2.6 quarts)
Tighten the filler plug and new gasket to the specified torque.
Tightening torque: 49 ± 19 N.m (37 ± 14 ft-lb)

Fig 2: Identifying Filler Plug Hole And Drain Plug With Gasket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
