Manual Transaxle Diagnosis & On-Vehicle Service -- Lancer Evolution
>>
Transaxle Control
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

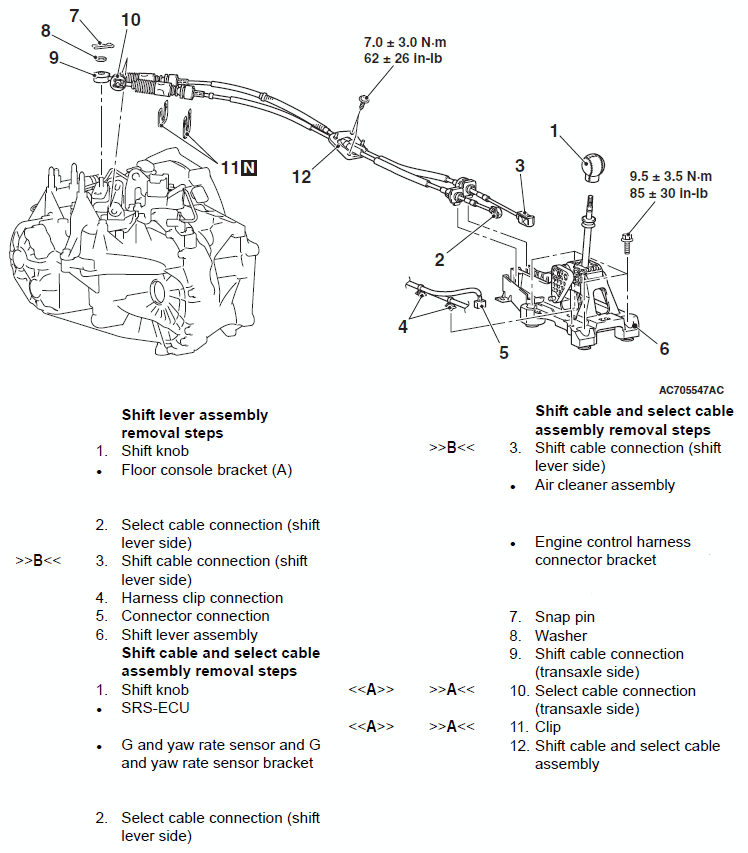

Fig 1: Transaxle Control Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
