Manual Transaxle Diagnosis & On-Vehicle Service -- Lancer Evolution
>>
AWC-Ecu
>>
Removal And Installation
Removal And Installation

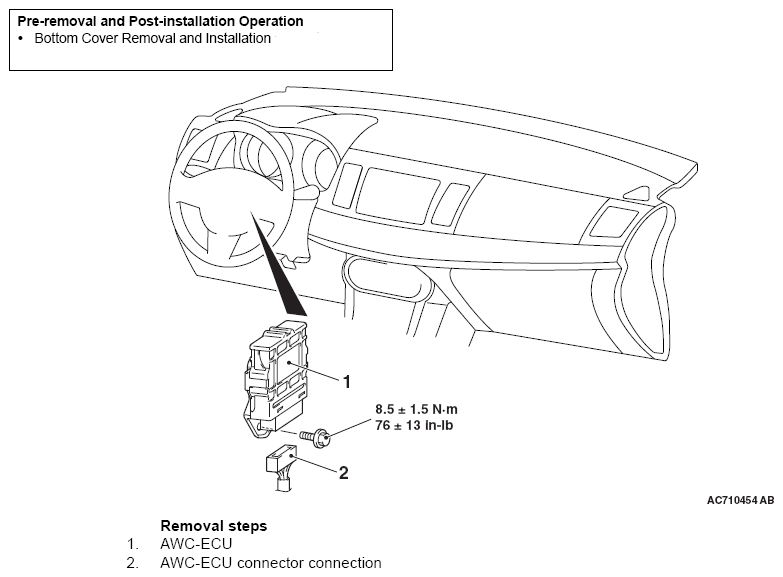

Fig 1: AWC-ECU And AWC-ECU Connector Connection With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
