Wheel Balancer Calibration Checking Flow Chart

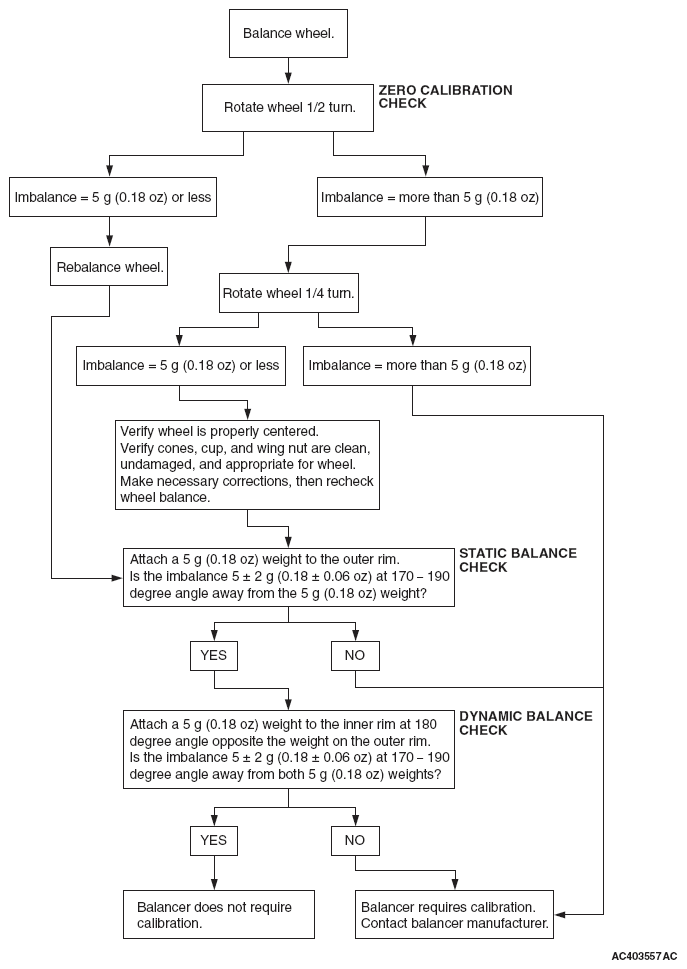

Fig 1: Wheel Balancer Calibration Checking Flow Chart

G06672707

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
