Removal And Installation: Notes

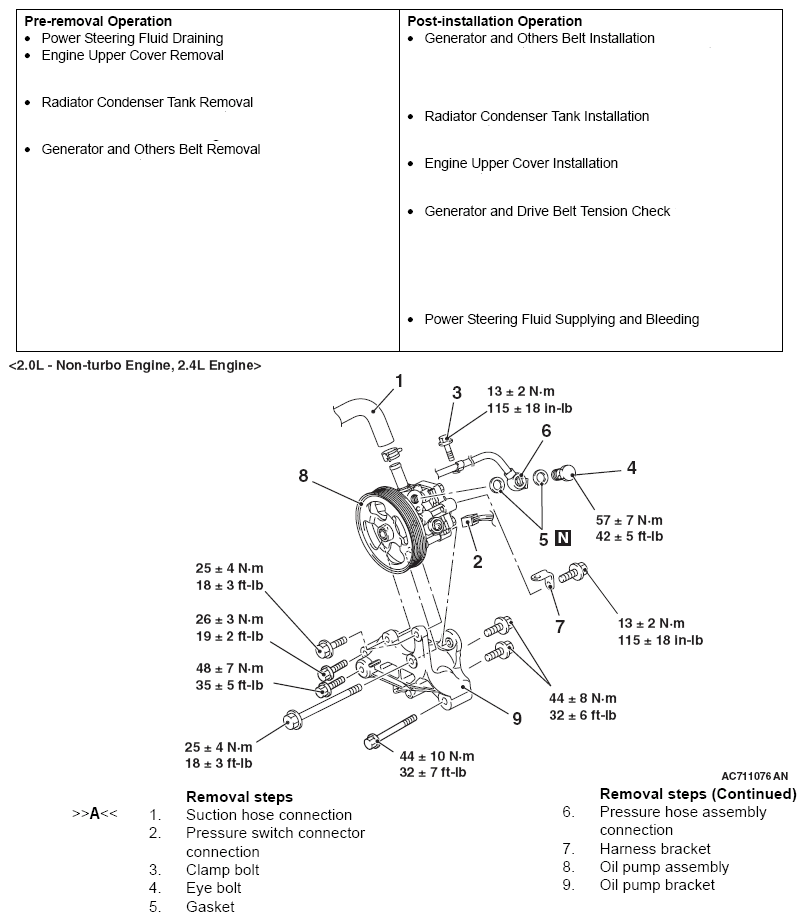

Fig 1: Power Steering Oil Pump Assembly Replacement Components With Torque Specifications - 2.0L-Non-Turbo Engine, 2.4 Engine
G06673034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

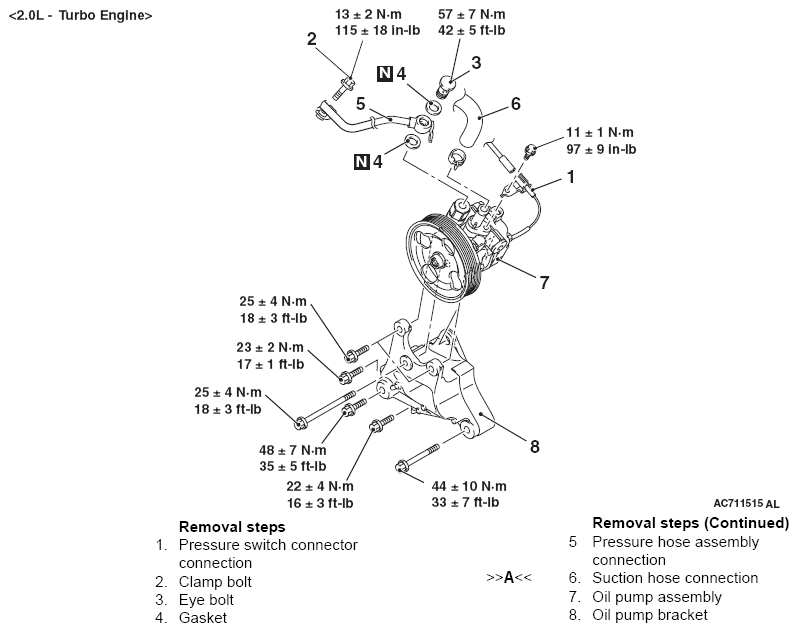

Fig 2: Power Steering Oil Pump Assembly Replacement Components With Torque Specifications - 2.0L - Turbo Engine
G06673035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
