DISASSEMBLY AND ASSEMBLY (EXCEPT 2.0L -- Turbo Engine): Notes

CAUTION:

Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

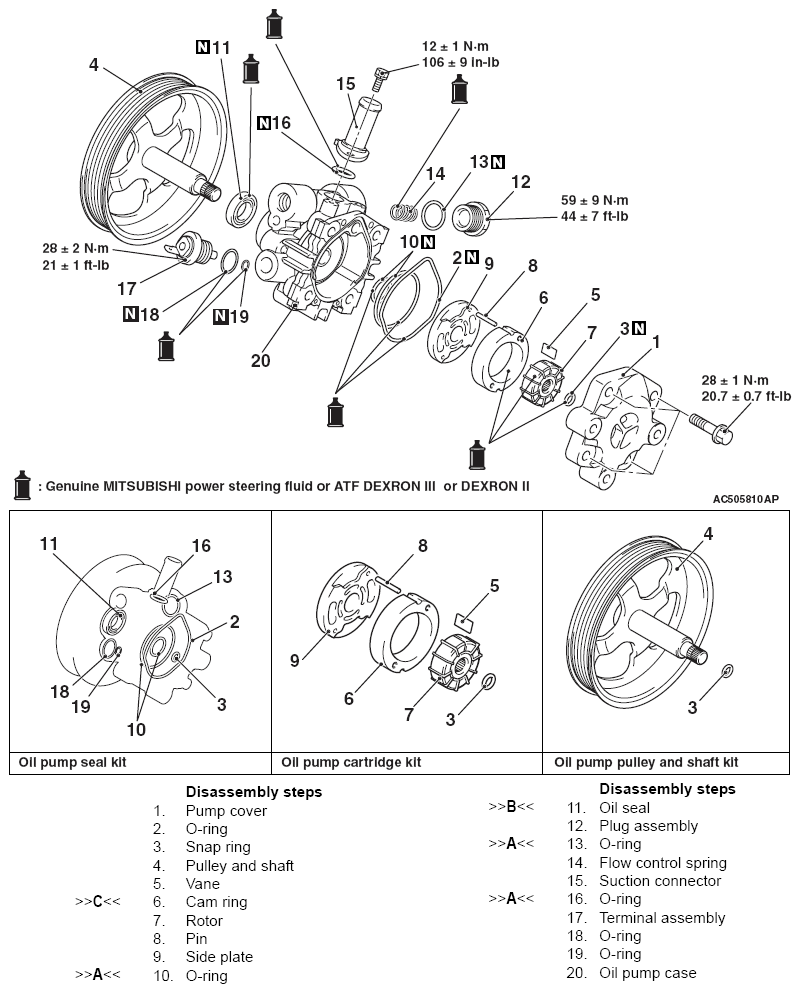

Fig 1: Exploded View Of Power Steering Oil Pump Assembly - Except 2.0L - Turbo Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB990938: Installer bar (MB990925: Including in the bearing and oil seal installer set)
MB991203: Oil seal and bearing installer
