Removal And Installation: Notes

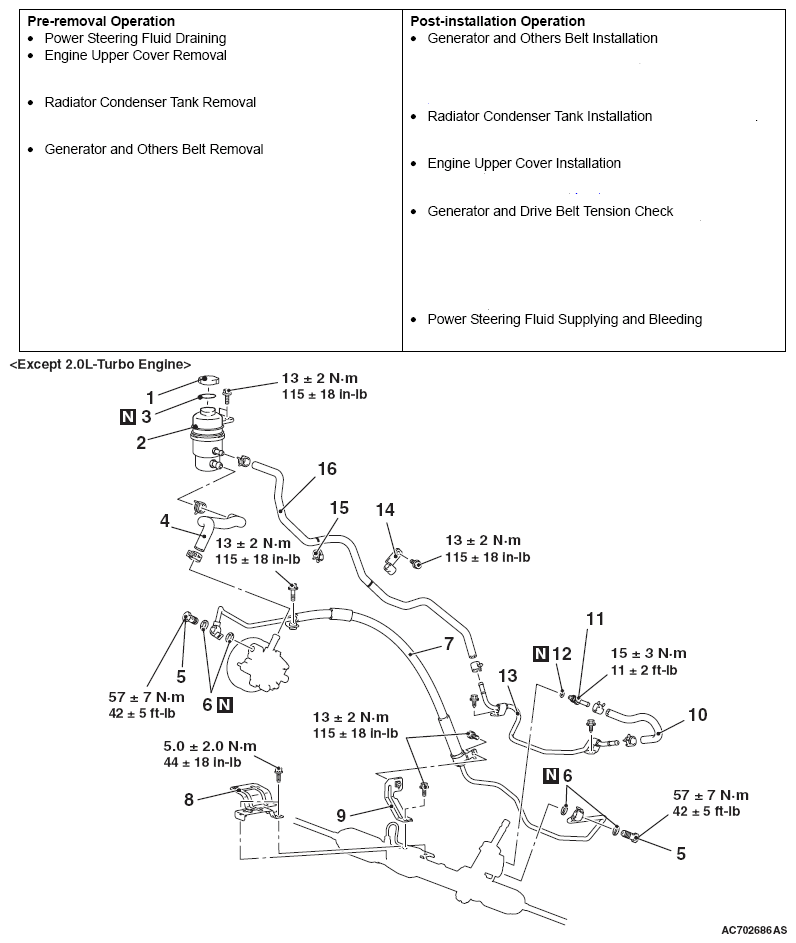

Fig 1: Power Steering Hoses Replacement Components With Torque Specifications - Except 2.0L-Turbo Engine
G06673042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

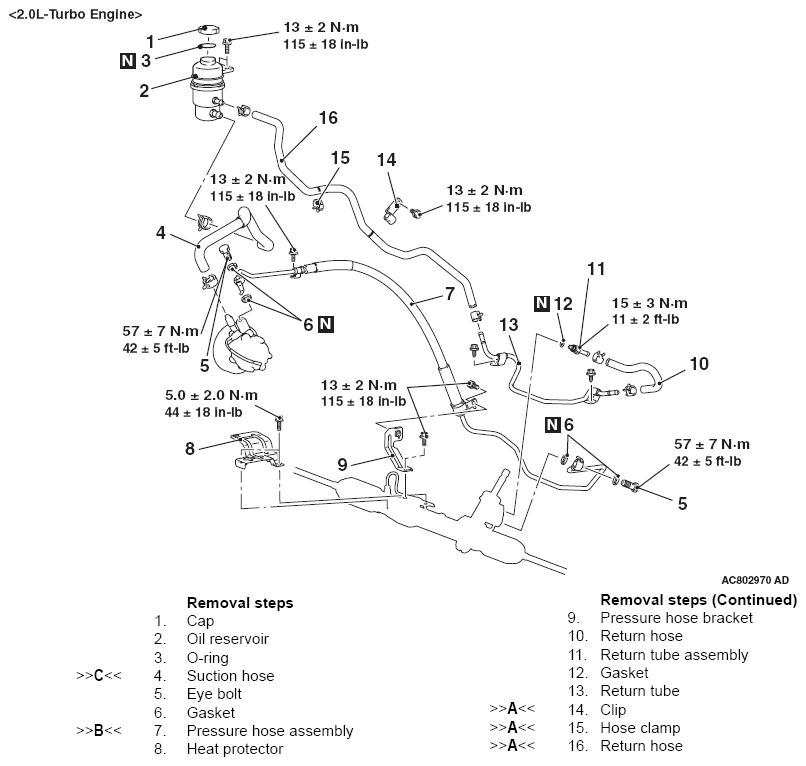

Fig 2: Power Steering Hoses Replacement Components With Torque Specifications - 2.0L-Turbo Engine
G06673043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
