Clip And Claw Positions
Clip And Claw Positions

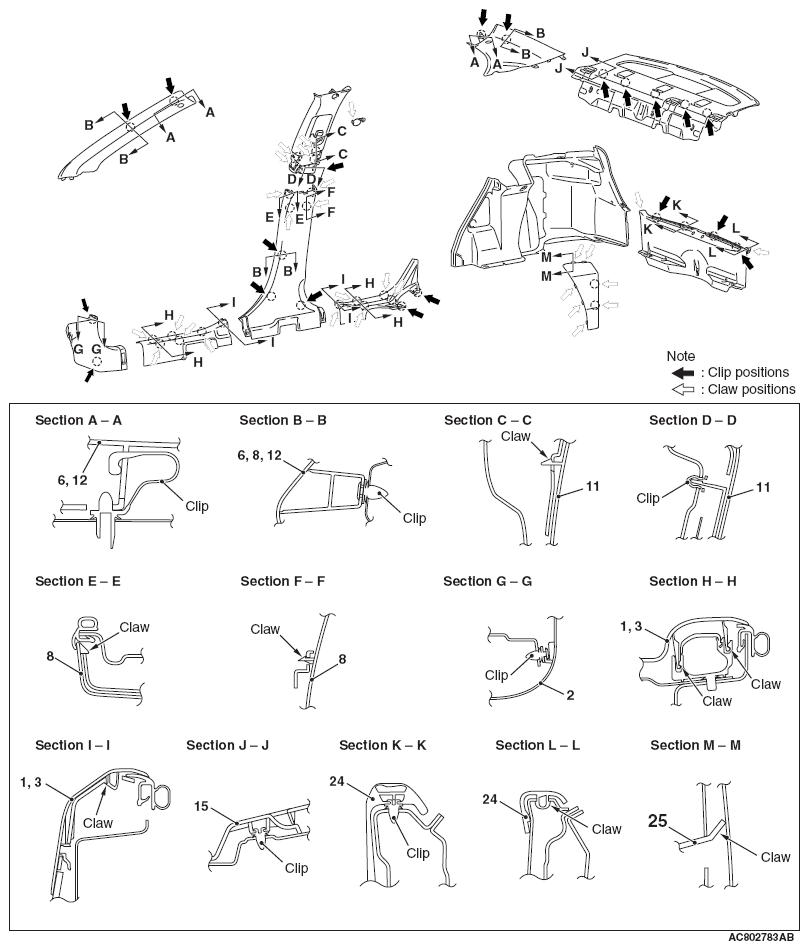

Fig 1: Identifying Clip And Claw Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Each number in the illustration indicates a part number.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
