Removal And Installation: Notes

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES Seat Belt with Pre-tensioner.

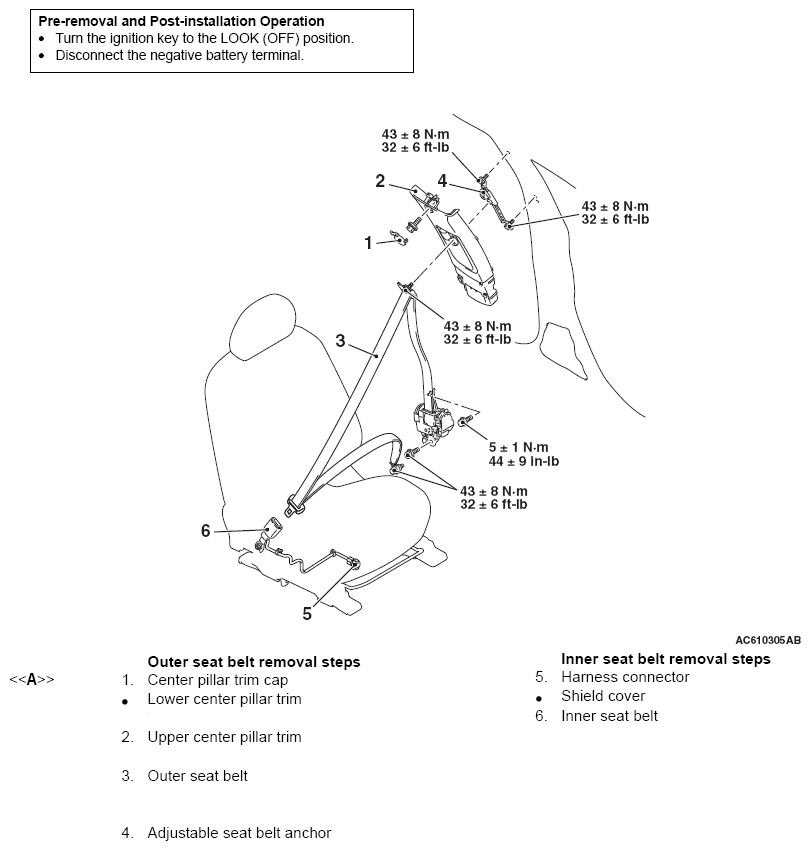

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
