Removal And Installation

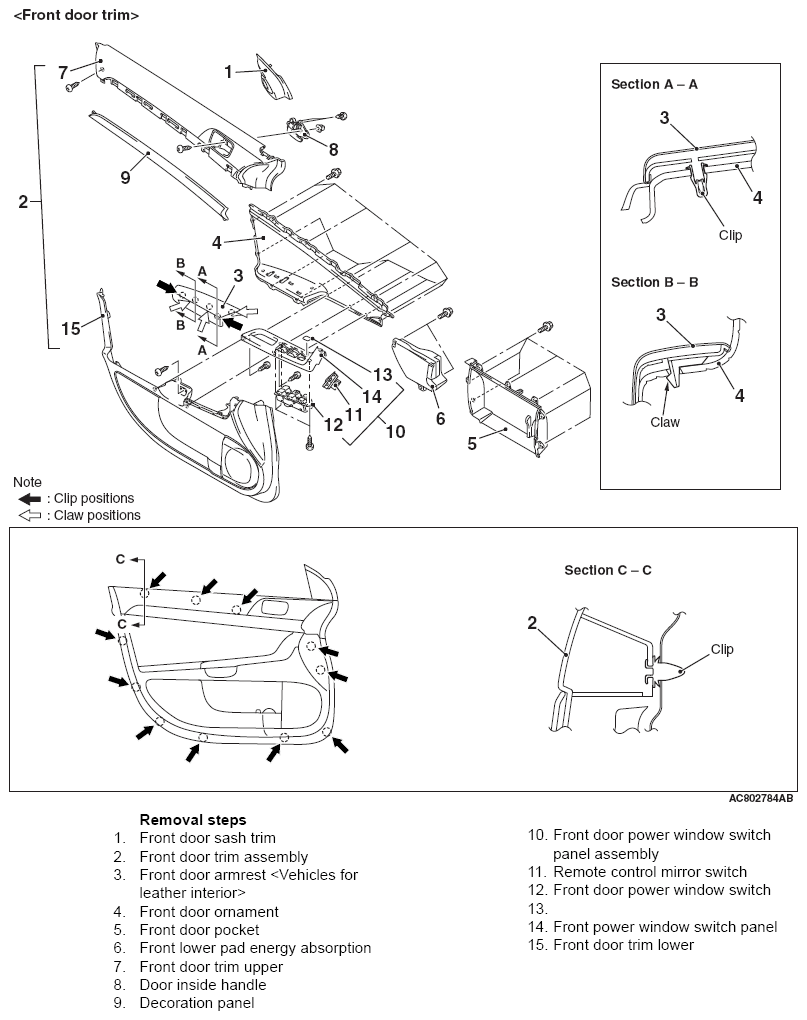

Fig 1: Identifying Door Trim Components (Front Door Trim)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

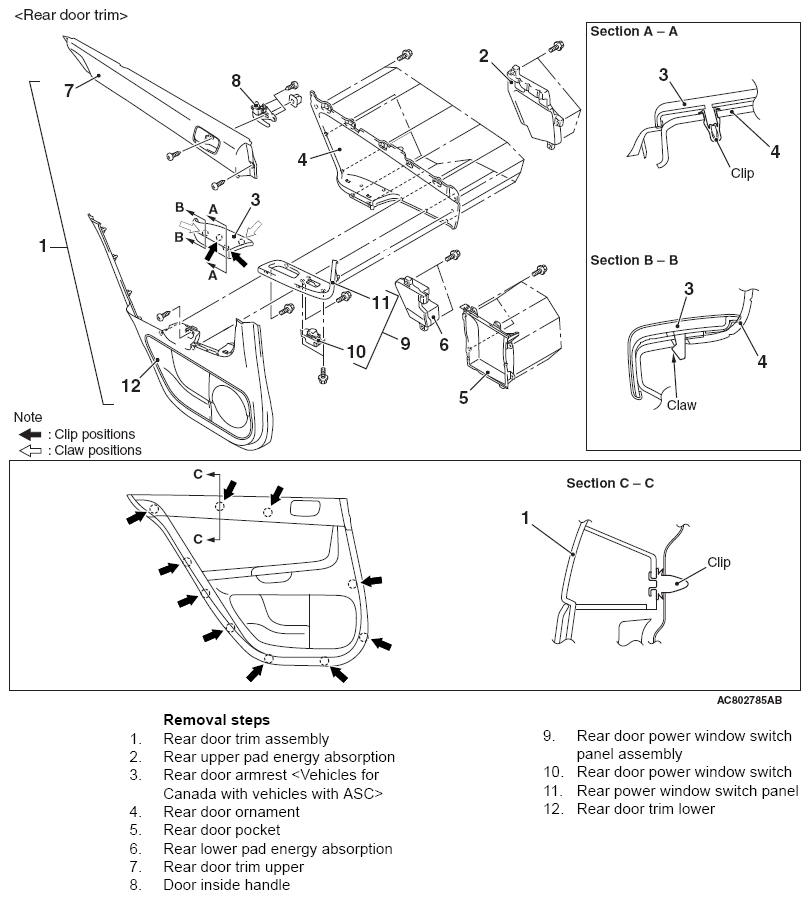

  Fig 2: Identifying Door Trim Components (Rear Door Trim)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
