Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (SRS) -- Lancer >> SRS Air Bag Diagnosis >> Symptom Procedures >> Inspection procedure 3: The SRS Warning Light does not Illuminate >> Notes

Inspection procedure 3: The SRS Warning Light does not Illuminate: Notes

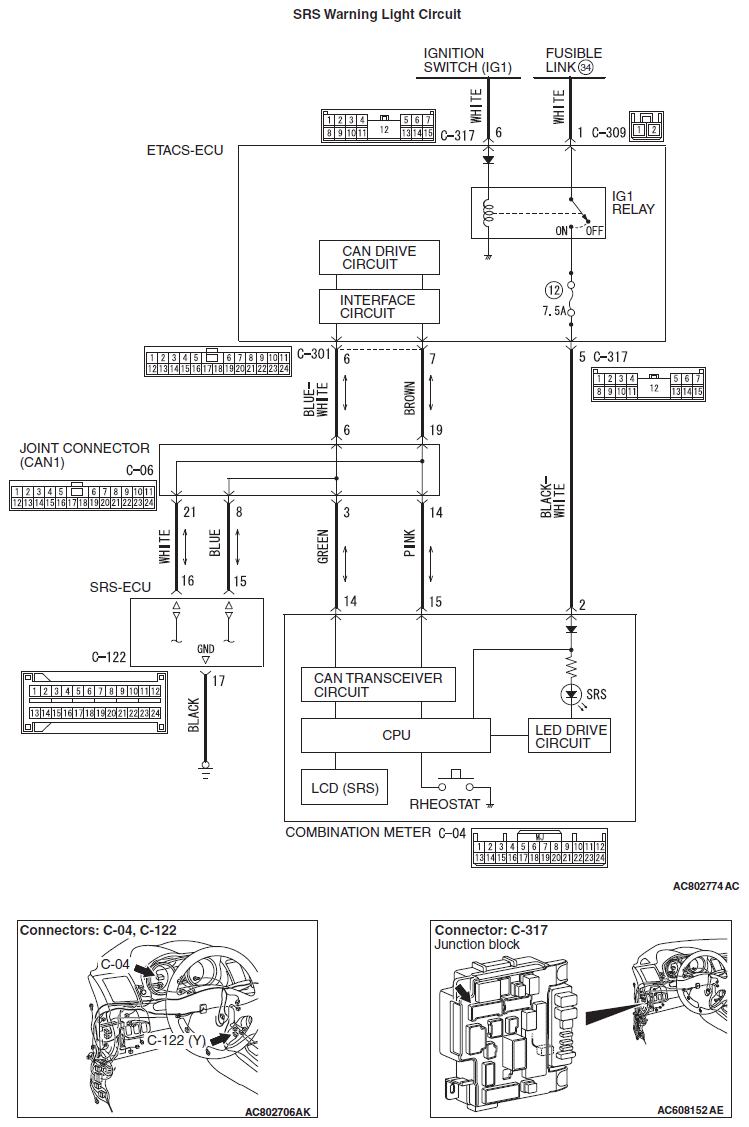

Fig 1: SRS Warning Light Circuit Diagram

G06669206

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
