Repair Procedure: SRS-Ecu

  1. Check the SRS-ECU case and brackets for dents, cracks or deformation.
  2. Check the connector for damage, and the terminals for deformation.
  3. Check the installation of the SRS-ECU and its bracket.

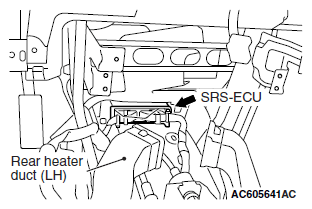

    Fig 1: Locating SRS-ECU Connector
    G06669222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
