Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (SRS) -- Lancer >> General Information >> Schematic

General Information: Schematic

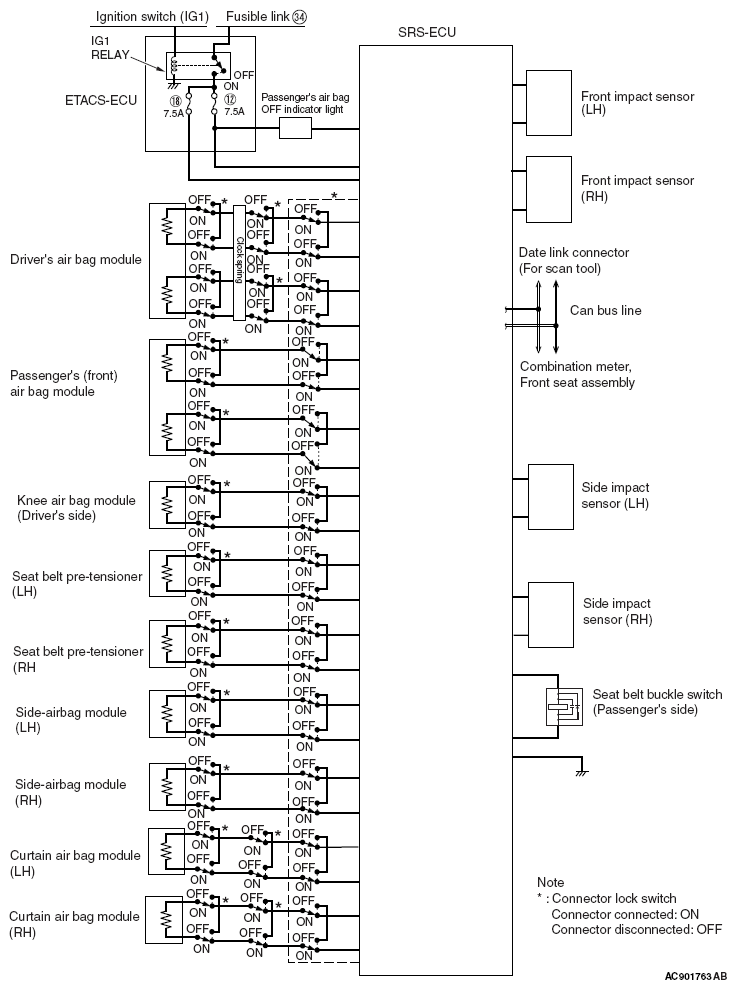

Fig 1: Supplemental Restraint System Schematic Diagram

G06668705

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
