Circuit Diagram

WARNING:

Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS ): replace the wiring if necessary, after reading and following all precautions and procedures in this information.
Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS ) and a digital multi-meter (refer to SRS AIR BAG DIAGNOSIS ).

CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

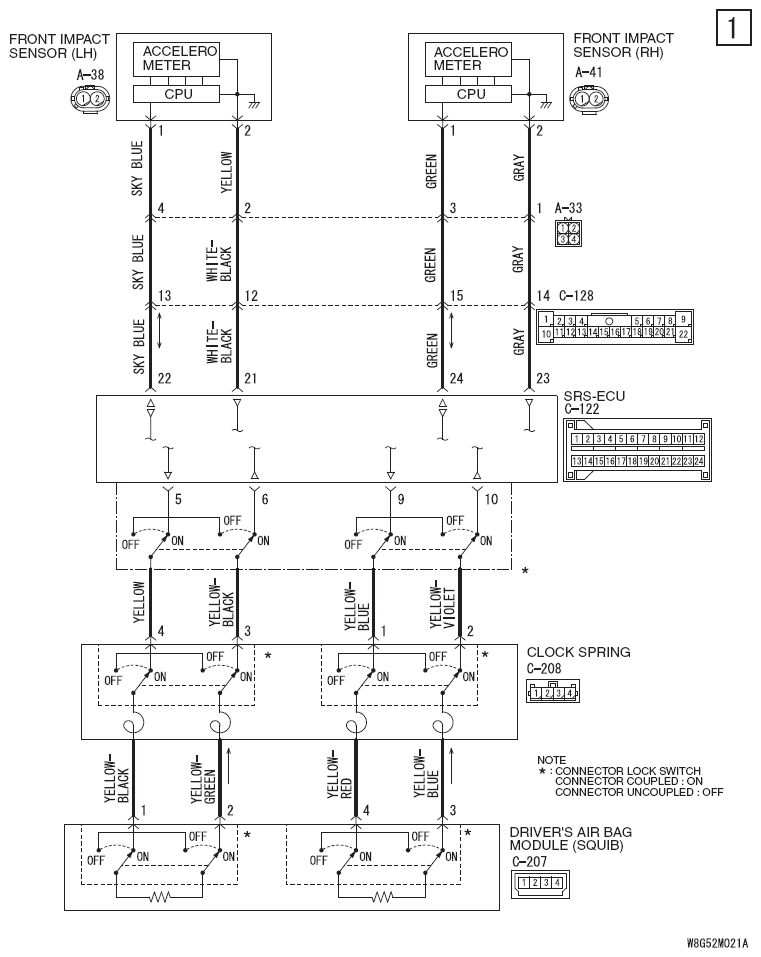

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 9)

G06668709

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

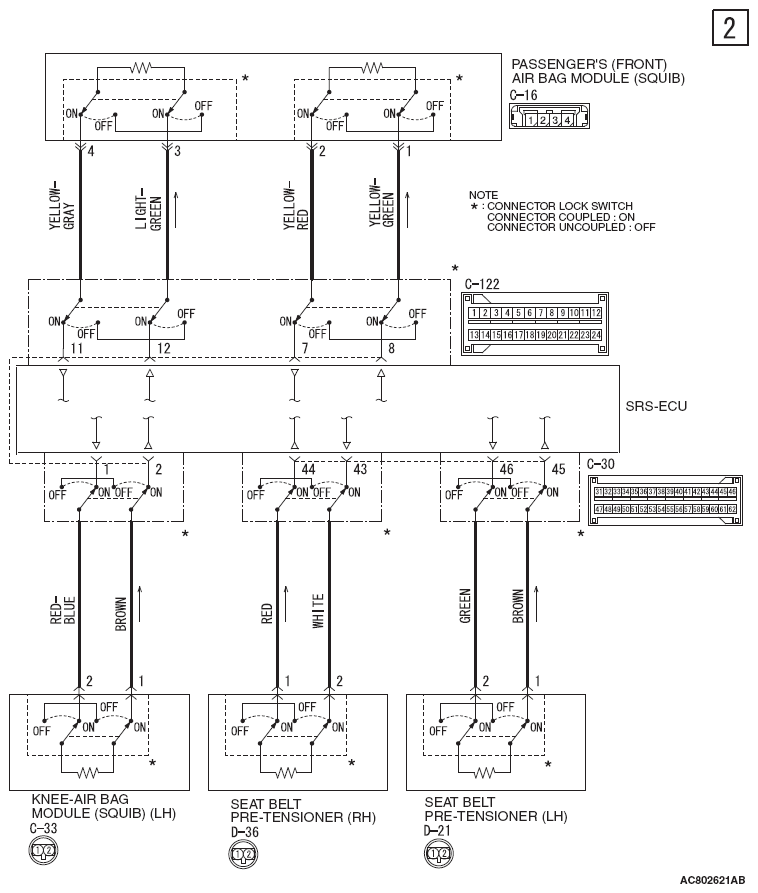

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 9)

G06668710

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

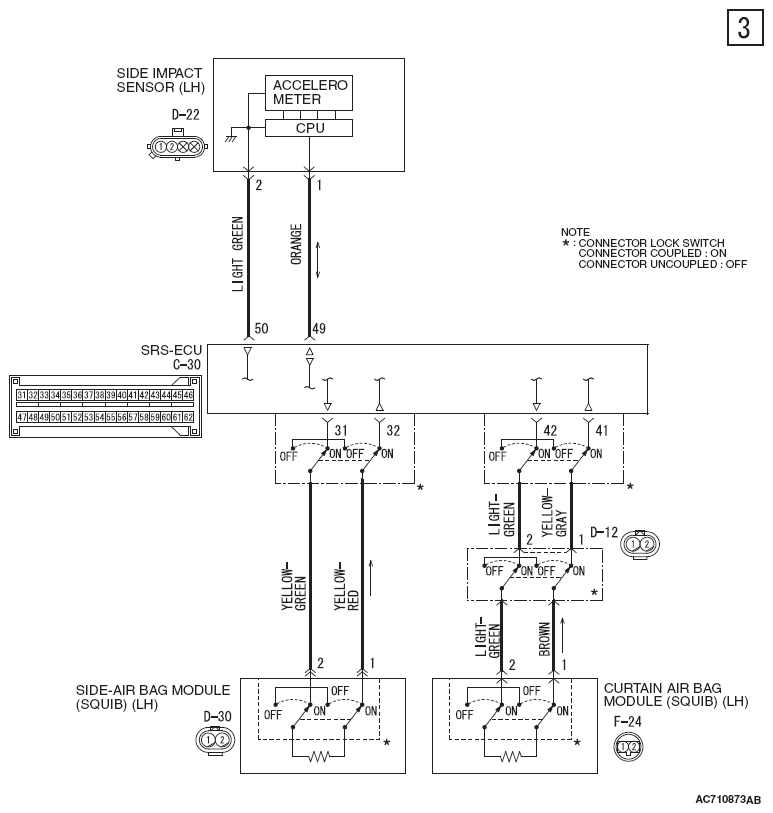

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 9)

G06668711

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

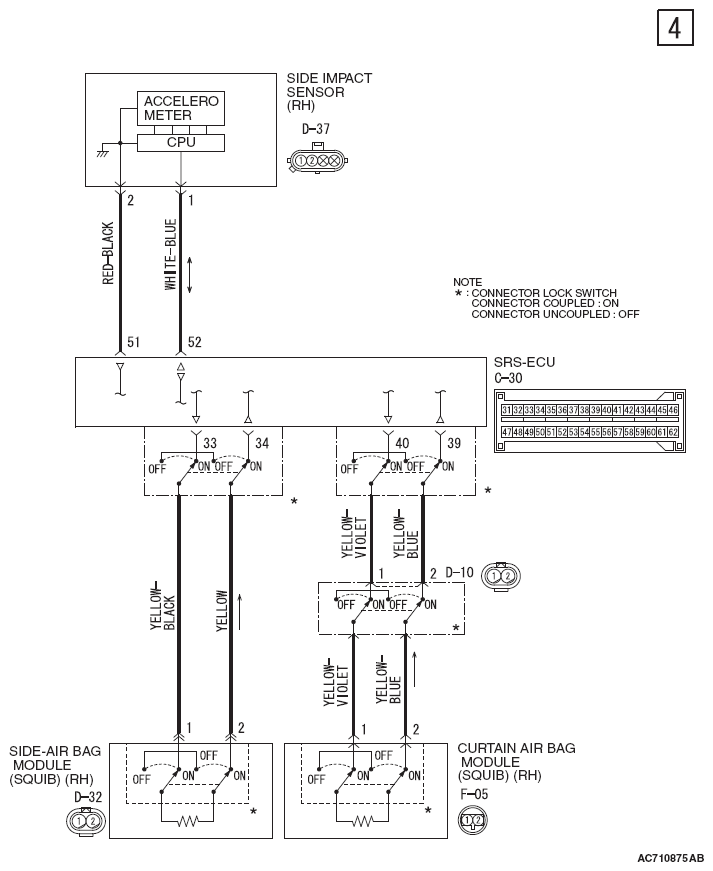

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 9)

G06668712

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

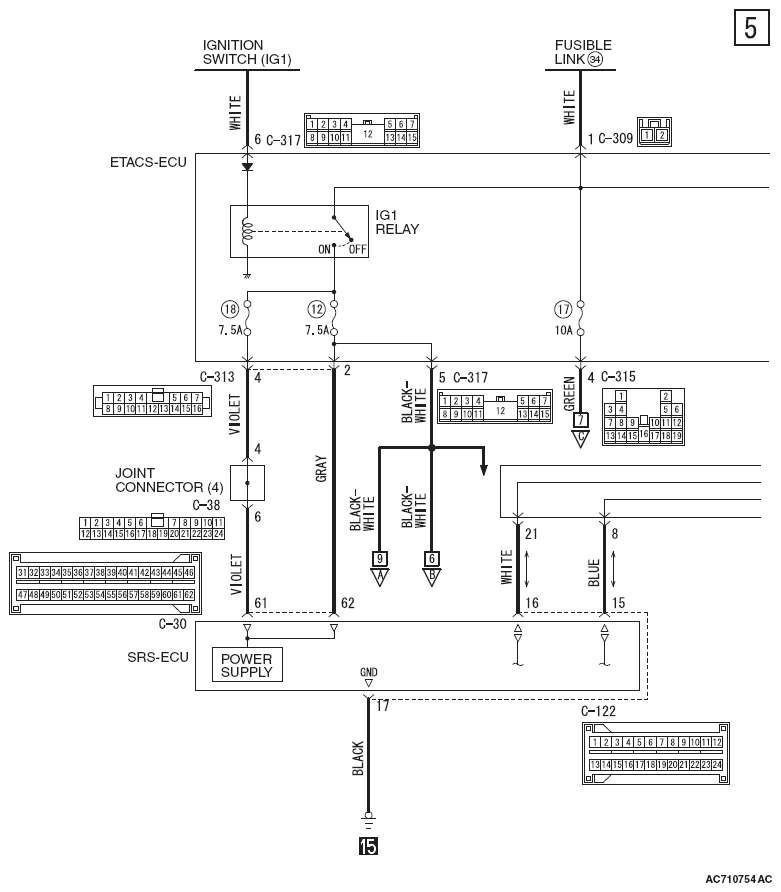

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 9)

G06668713

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

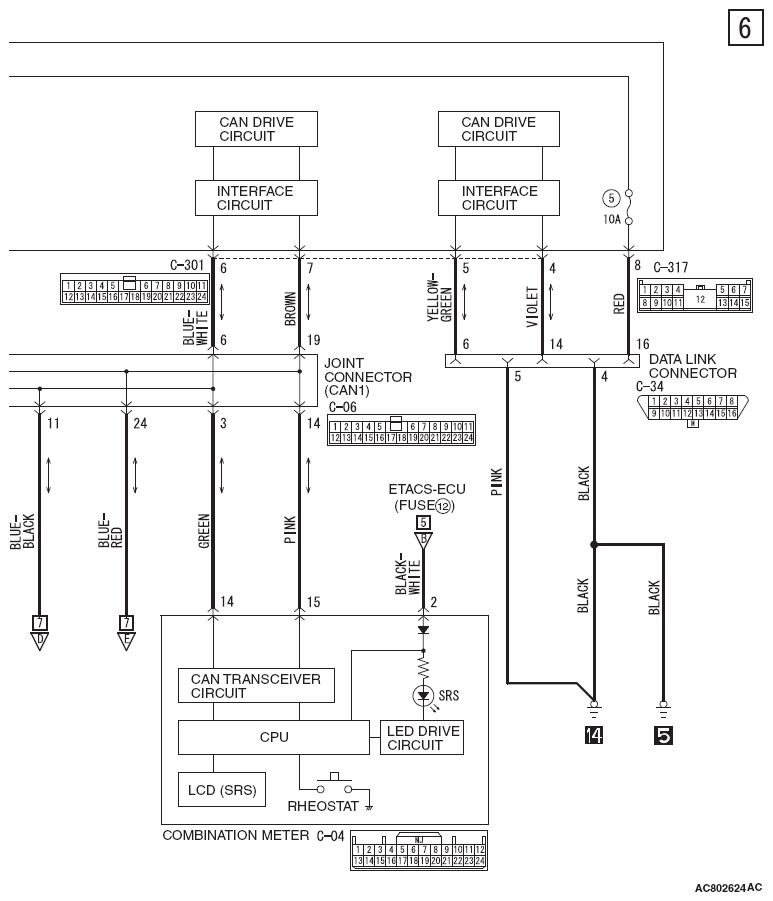

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 9)

G06668714

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

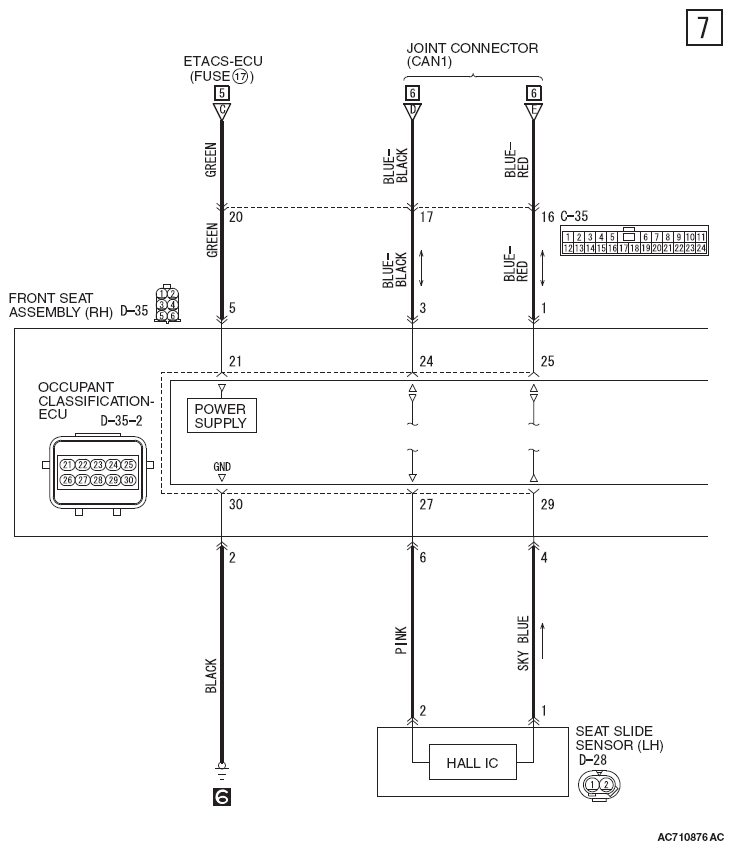

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 9)

G06668715

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

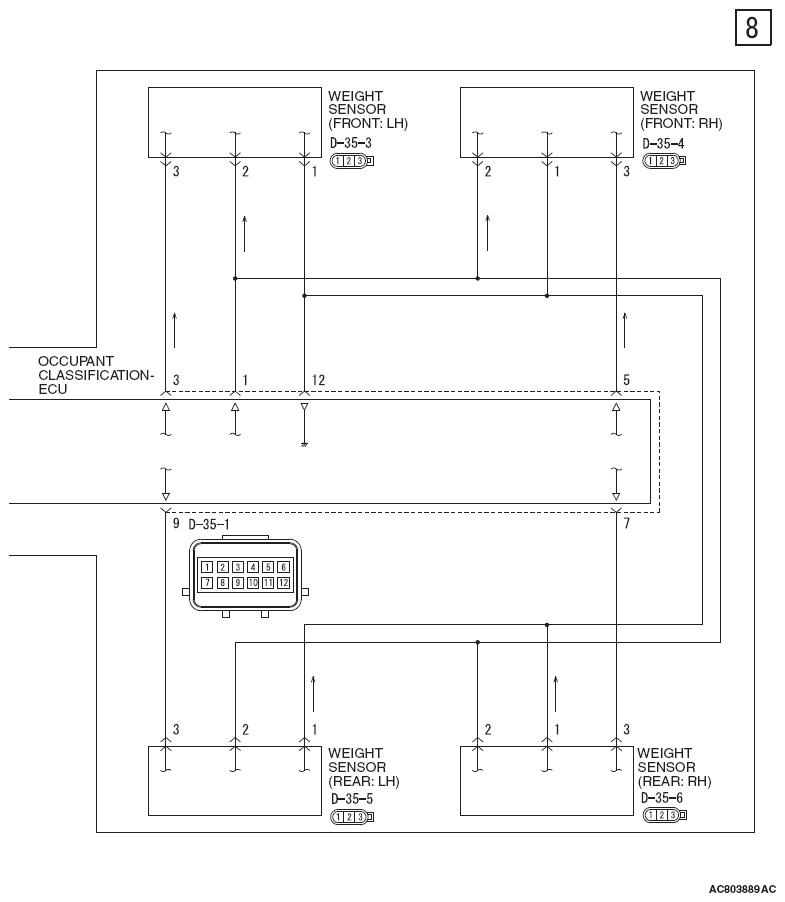

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 9)

G06668716

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

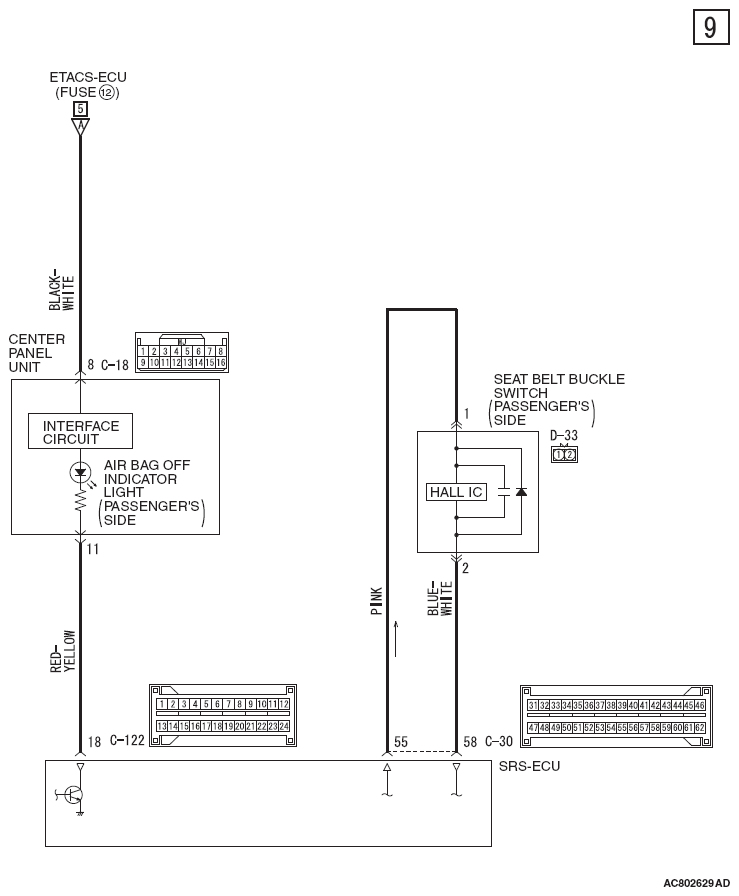

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 9)

G06668717

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
